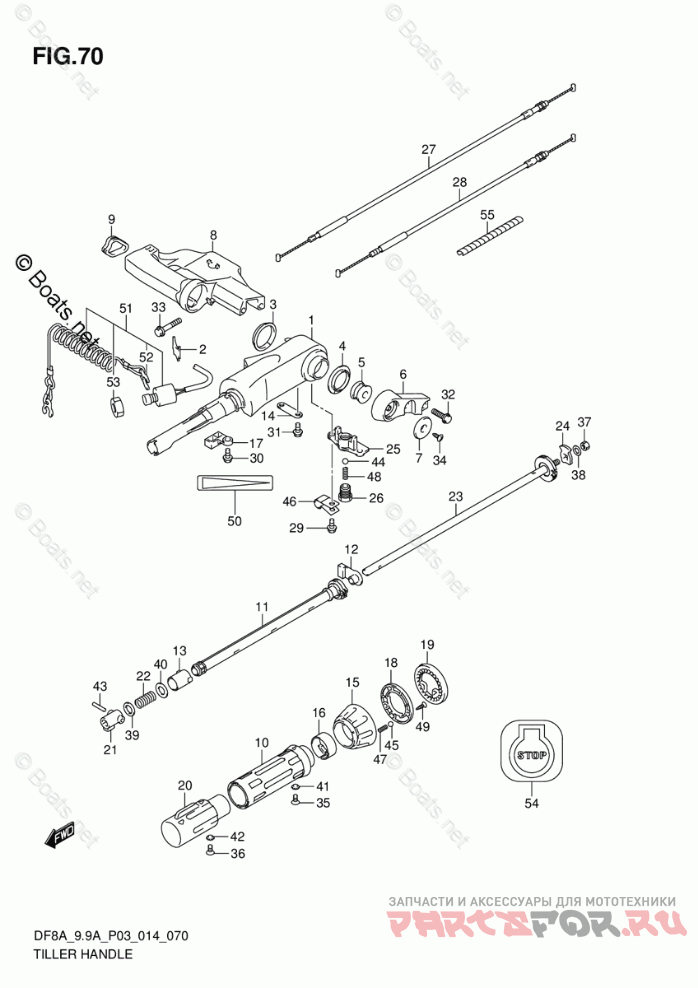

Tiller Handle (DF9.9A P03)

Suzuki Marine DF 9.9ARL

Suzuki Marine
#oem кодцена
1
63111-99J11-0EP
HANDLE, TILLER (BLACK)
2
63114-99J01
PLATE, WIRING INDICATOR
3
63115-99J00
BUSH, TILLER HANDLE NO.2
4
63115-99J10
BUSH, TILLER HANDLE NO.1
5
63116-99J00
RUBBER, FRICTION
6
63121-99J00-0EP
COVER, TILLER HANDLE (BLACK)
7
63122-99J00
PROTECTOR, HANDLE COVER
8
63131-99J01-0EP
BRACKET, TILLER HANDLE (BLACK
9
63133-89L00
GROMMET, TILLER HANDLE
10
63210-99J00
GRIP, THROTTLE
11
63221-99J00
ROD, THROTTLE
12
63225-99J00
BUSH, SHIFT ROD
13
63226-99J00
BUSH, THROTTLE / SHIFT ROD
14
63228-99J00
HOLDER, HANDLE ROD
15
63244-99J00
KNOB, ADJUSTER
16
63245-99J00
BUSH, ADJUSTER
17
63246-99J00
STOPPER, ADJUSTER
18
63247-99J00
PLATE, ADJUSTER KNOB
19
63248-99J00
PLATE, ADJUSTER NOTCH
20
63340-99J00
GRIP, SHIFT
21
63344-99J00
STOPPER, SHIFT ROD
22
63345-99J00
SPRING, SHIFT GRIP
23
63350-99J00
ROD, SHIFT
24
63353-99JL0
PLATE, SHIFT NOTCH
25
63354-99J00-0EP
HOLDER, SHIFT NOTCH (BLACK)
26
63355-99J00
BOLT, SHIFT NOTCH SPRING
27
63610-99J00
CABLE ASSY, THROTTLE
28
63640-99J00
CABLE ASSY, SHIFT
29
09116-06225
BOLT (6X15)
30
09116-06225
BOLT (6X15)
31
09116-06225
BOLT (6X15)
32
09116-08151
BOLT (8X30)
33
09116-08155
BOLT (8X45)
34
09125-05042
SCREW (5X10)
35
09126-06025
SCREW (6X14)
36
09126-06025
SCREW (6X14)
37
09140-08023-XC0
NUT
38
09160-08082
WASHER (8.5X16X1.2)
39
09160-10082
WASHER (10.5X19X2)
40
09160-10114
WASHER (10.5X22X1.5)
41
09163-06001
LOCK WASHER
42
09163-06001
LOCK WASHER
43
09202-04023
PIN (4X22)
44
09260-10006
BALL
45
09260-10006
BALL
46
09403-13408
CLAMP
47
09440-06037
SPRING
48
09440-07079
SPRING
49
03522-05169
SCREW
50
63215-93110
MARK, HANDLE GRIP
51
37830-99J10
SWITCH ASSY, EMERGENCY
52
37823-97J00
PLATE, LOCK
53
37826-97J00
NUT
54
37835-95D00
LABEL, STOP
55
33833-91J00
TUBE, SW LEAD *{L:250->150}*
