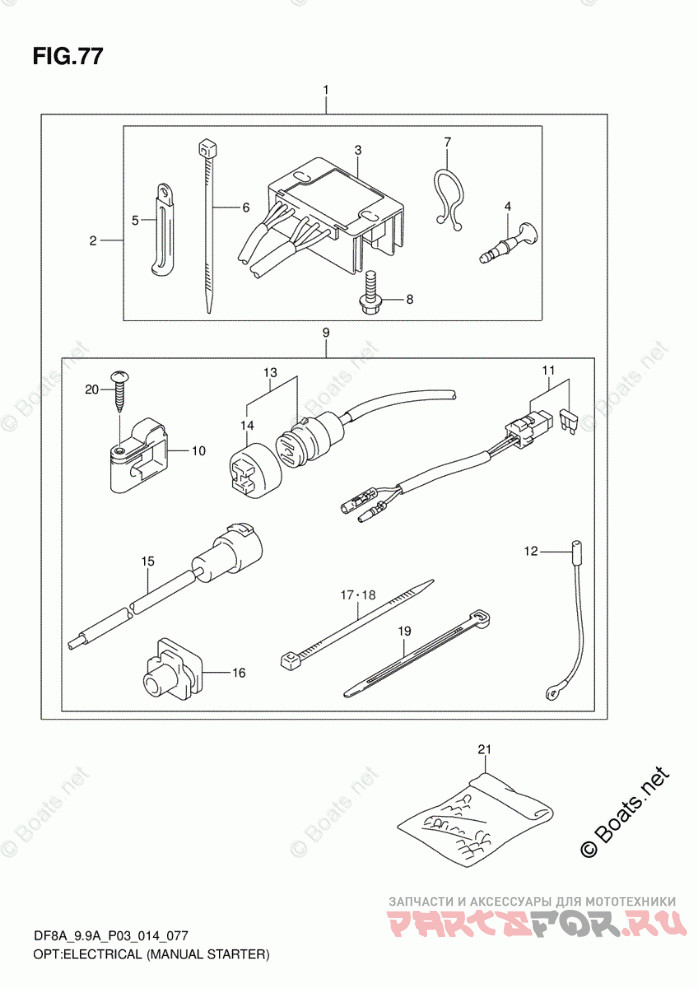

OPT:Electrical (Manual Starter) (DF8A P03)

Suzuki Marine DF 8AL

Suzuki Marine
#oem кодцена
1
32000-99J00
KIT, BATTERY CHARGING
2
32801-95J01
RECTIFIER/REGULATOR SET
3
32800-95J01
RECTIFIER/REGULATOR ASSY
4
36615-96300
TERMINAL, RESIN
5
29404-93J10
CLAMP, RECT/RGLTR LEAD
6
09407-10404
CLAMP (L:100)
7
09408-00024
CLIP (ID:23)
8
01550-06257
BOLT
9
39600-94J01
RECEPTACLE SET
10
33816-94J01
CLAMP, CABLE
11
36740-94J00
CASE ASSY, FUSE
12
37801-98300
LEAD RECEPTACLE GROUND
13
39601-95D00
RECEPTACLE ASSY, LIGHTING
14
36634-93910
CAP
15
39602-93900
PLUG, RECEPTACLE
16
39603-94400
GROMMET.RECEPTACLE
17
09407-10404
CLAMP (L:100)
18
09407-25402
CLAMP (L:250)
19
09407-14403
CLAMP (L:125)
20
03241-0625A
SCREW
21
36990-87D00
TERMINAL & SLEEVE SET
