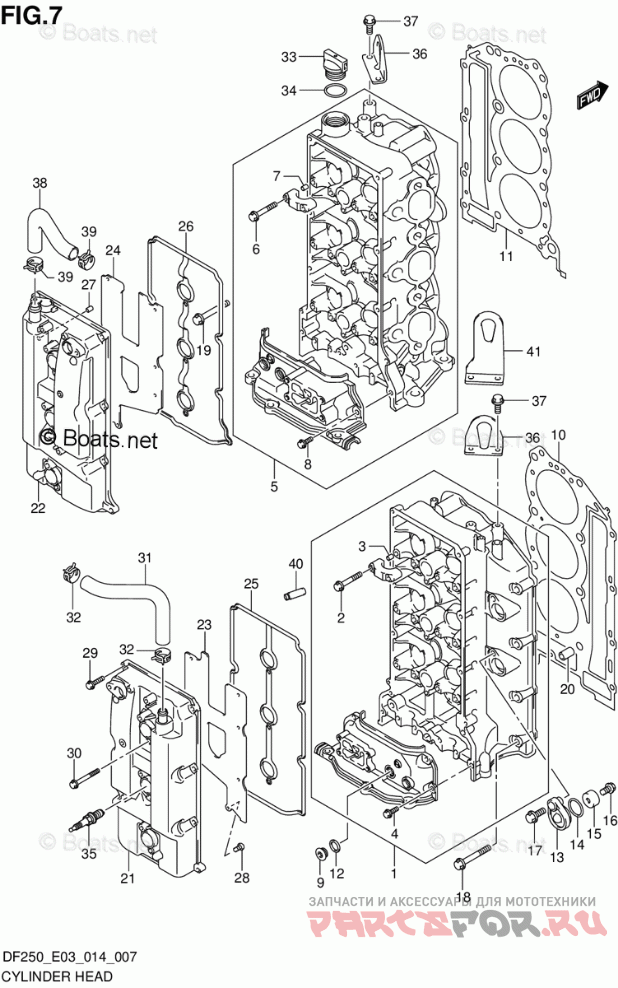

Cylinder Head (DF250ST E03)

Suzuki Marine DF 250SSTL

Suzuki Marine
#oem кодцена
1
11101-98J03
HEAD ASSY, CYLINDER STBD
2
11128-90J00
BOLT, CAM SHAFT HOUSING
3
09206-08001
PIN (8X11)
4
01550-06207
BOLT
5
11103-98J03
HEAD ASSY, CYLINDER PORT
6
11128-90J00
BOLT, CAM SHAFT HOUSING
7
09206-08001
PIN (8X11)
8
01550-06207
BOLT
9
11116-93J01
PLUG
10
11141-98J10
GASKET, CYL HEAD STBD
11
11142-98J10
GASKET, CYL HEAD PORT
12
09168-16009
GASKET (16X22X0.8)
13
11261-93J00
COVER, PROTECTION ANODE
14
09280-22019
O RING (D:1.9,ID:21.8)
15
55321-87J00
ANODE, PROTECTION
16
09103-06281
BOLT (6X14)
17
01550-08207
BOLT
18
01550-08607
BOLT *{STBD}*
19
01550-08607
BOLT *{PORT}*
20
09206-14004
PIN (14X11.4X23)
21
11170-93J01
COVER, CYL HEAD STBD
22
11180-93J22
COVER, CYLINDER HEAD PORT
23
11173-93J00
PLATE, BREATHER STBD
24
11183-93J00
PLATE, BREATHER PORT
25
11179-93J00
GASKET, CYL HEAD COVER STBD
26
11189-93J00
GASKET, CYL HEAD COVER PORT
27
09206-08001
PIN (8X11)
28
02112-0612A
SCREW
29
01547-06257
BOLT
30
01547-06507
BOLT
31
11174-93J00
HOSE, BREATHER
32
09401-18410
CLIP
33
11382-93J00
CAP, OIL FILLER
34
09280-26006
O RING (D:3.1,ID:26.4)
35
09482-00427
SPARK PLUG (BKR6E) *{NGK}*
36
11291-93J00
HOOK, ENGINE
37
01550-08207
BOLT
38
11184-93J00
HOSE, BREATHER
39
09401-18410
CLIP
40
11115-93J10-001
GUIDE, VALVE OS *{OPT}*
41
11291-98J00
HOOK, ENGINE *{OPT}*
