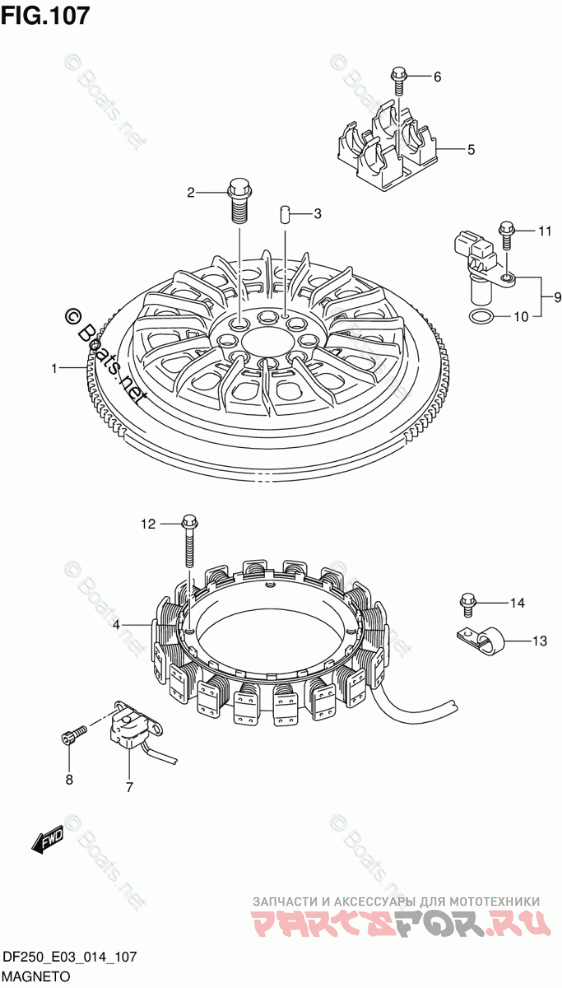

Magneto (DF200Z E03)
Suzuki Marine DF 200TXW
| # | oem код | название | цена |
|---|---|---|---|
1 | 32102-93J02 FLYWHEEL | FLYWHEEL | |
2 | 09103-12071 BOLT (12X26) | BOLT (12X26) | |
3 | 09202-06031 PIN (6X12) | PIN (6X12) | |
4 | 32120-93J00 COIL, BATTERY CHARGING | COIL, BATTERY CHARGING | |
5 | 32131-93J00 HOLDER, STATOR CONNECTING | HOLDER, STATOR CONNECTING | |
6 | 01550-06167 BOLT | BOLT | |
7 | 32160-88L00 COIL, IGNITION TIMING | COIL, IGNITION TIMING | |
8 | 09106-05030 BOLT (5X10) | BOLT (5X10) | |
9 | 33220-69J00 SENSOR, CAM POSITION | SENSOR, CAM POSITION | |
10 | 33221-42F00 O RING | O RING | |
11 | 01550-06167 BOLT | BOLT | |
12 | 09103-06231 BOLT (6X35) | BOLT (6X35) | |
13 | 09403-13408 CLAMP | CLAMP | |
14 | 01550-06127 BOLT | BOLT |
