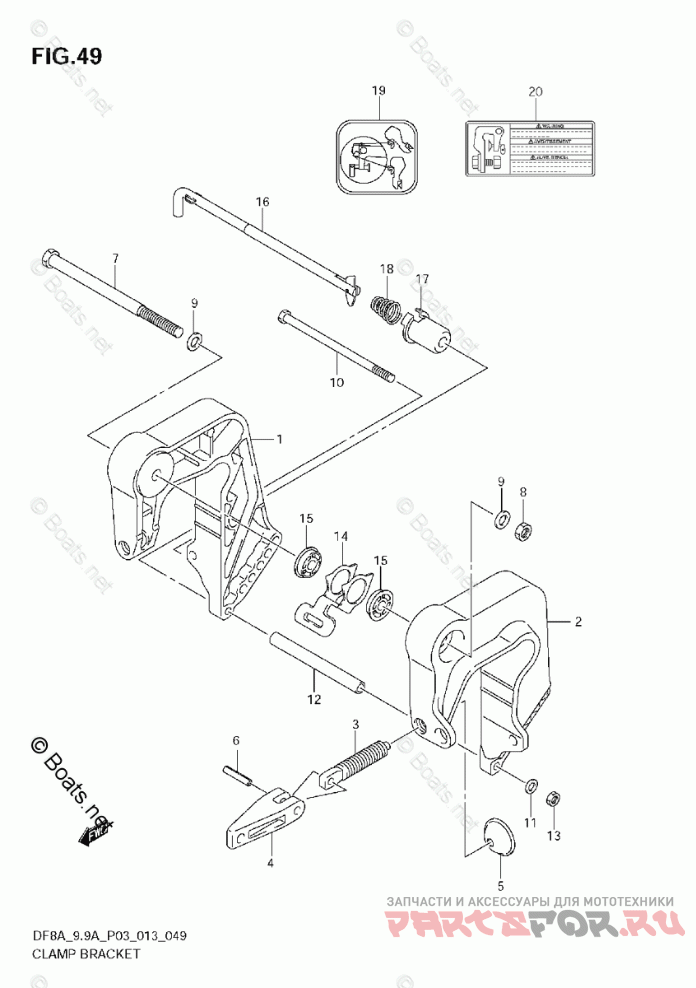

Clamp Bracket (DF8A E03)

Suzuki Marine DF 8ARS

Suzuki Marine
#oem кодцена
1
41111-99J00-0EP
BRACKET, CLAMP STBD (BLACK)
2
41121-99J00-0EP
BRACKET, CLAMP PORT (BLACK)
3
41211-99JL0
SCREW, CLAMP
4
41212-91J00
HANDLE, CLAMP
5
41213-98100
PLATE, CLAMP
6
09205-06007
SPRING PIN (6X25)
7
09100-10320
BOLT (10X145)
8
09159-10L07
NUT
9
09160-10082
WASHER (10.5X19X2)
10
09100-06177
BOLT (6X140)
11
09160-06082
WASHER (6.5X13X1.0)
12
09180-06357
SPACER (6.5X10.5X104)
13
29141-93J00
NUT, CLAMP BRKT LWR (M6)
14
45261-94J00
LEVER, RELEASE
15
09306-10023
BUSH
16
45420-99JM0
PIN, TILT LOCK
17
45425-94J00
STOPPER, TILT LOCK PIN
18
09441-17001
SPRING
19
45269-94J20
MARK, REVERSE LOCK
20
69911-91J00
MARK, CLAMP BRACKET
21
41210-99JL1
SCREW SET, CLAMP *{OPT NOT ILLUSTRATED}*
