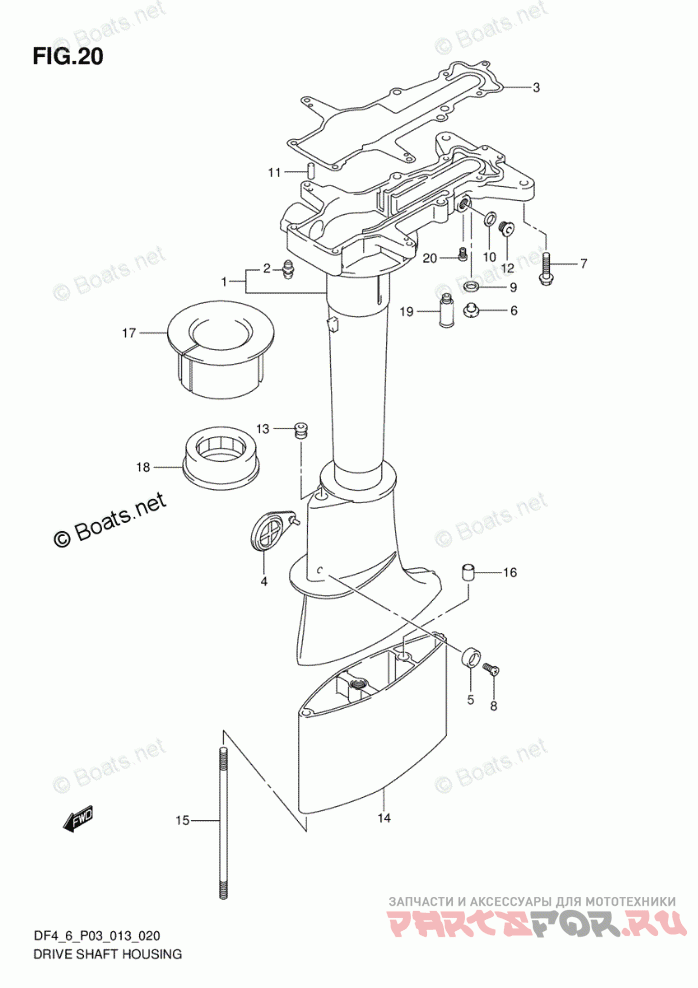

DRIVE SHAFT HOUSING

Suzuki Marine DF 4l

Suzuki Marine
#oem кодцена
1
52110-91J00-0EP
HOUSING, DRIVE SHAFT (BLACK)
2
22511-99011
NIPPLE, GREASE
3
52113-91J01
GASKET, DRIVE SHAFT HSG
4
52115-98600
COVER, CLUTCH ADJUST HOLE
5
55321-87J00
ANODE, PROTECTION
6
09248-10008
PLUG (10X7.5)
7
09116-06189
BOLT (6X38)
8
09103-06281
BOLT (6X14)
9
09168-10022
GASKET (10X17X1.5)
10
09168-12017
GASKET (12X17X1)
11
09202-06015
PIN
12
09248-12007
PLUG (12X9)
13
09320-04010
BUSH
14
52131-91J20-0EP
CASE, EXTENSION (BLACK) *{W/TRANSOM(L)}*
15
09108-08092
STUD BOLT *{W/TRANSOM(L)}*
16
09206-11006
PIN (8.4X11X8) *{W/TRANSOM(L)}*
17
54132-91J10
RUBBER, MOUNT UPPER
18
54162-91J00
RUBBER, MOUNT LOWER
19
55181-95200
ATTACHMENT, FLUSH HOSE *{OPT}*
20
52117-92D00
TUBE, WATER INSPECTION
