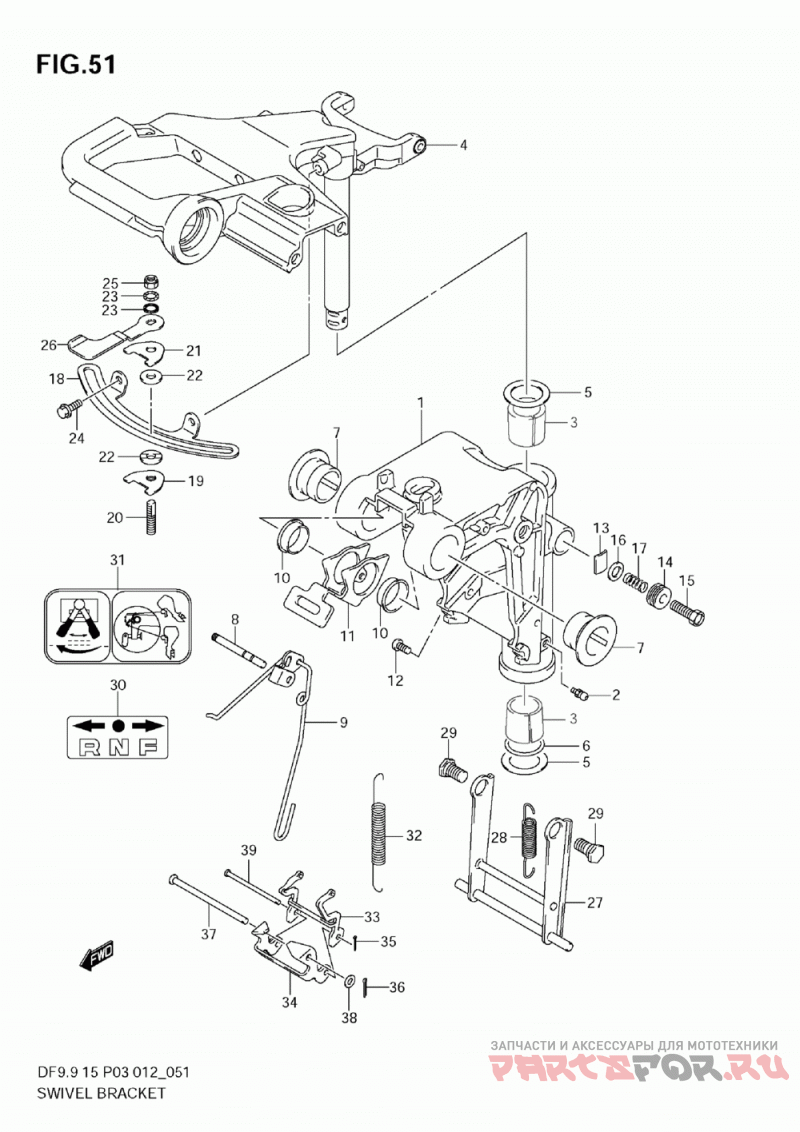

Swivel bracket (df15)

Suzuki Marine DF9.9/DF15 L2

Suzuki Marine
#oem кодцена
1
43111-94J31-0EP
Bracket, Swivel
2
22511-99011
Ниппель
3
43711-99J00
Bush, Steering
4
43750-94J20-0EP
Bracket, Steerin
5
09160-27009
Шайба
6
09280-27004
Уплотнительное кольцо
7
43211-87JL0
Bush, Swivel Bra
8
41225-94502
Pin, Tilt Lock S
9
45250-94J00
Link Comp, Relea
10
09306-22006
Втулка
11
45261-94J00
Lever, Release
12
29125-93J10
Винт
13
43411-939L0
Plate, Steering
14
43412-93900
Cover Adjust
15
09100-08232
Болт
16
09160-08082
Шайба
17
29440-93J00
Spring, Steering
18
43415-94J00
Plate, Steering
19
43420-94J20
Plate Comp, Strg
20
43512-94JL0
Shaft, Strg Adju
21
43514-94J00
Plate, Strg Adju
22
43514-95J00
Washer, Strg Adj
23
43516-89J00
Washer, Steering
24
29116-93J00
Болт
25
09159-08059
Гайка
26
43411-94J00
Adjuster, Steeri
27
45710-99JL0
Arm, Shallow Dri
28
45722-94J11
Spring, Shallow
29
09111-10067
Bolr, 10x20.4
30
21131-94J00
Mark, Clutch Shi
31
45269-94J00
Mark, Reverse Lo
32
45212-99JL0
Spring, Reverse
33
45231-99JL0
Arm, Reverse Loc
34
45241-99JL1
Link, Reverse Lo
35
09204-01002
Штифт
36
45247-99J00
Pin, Rev Lock Ar
37
09200-06061
Pin (sus)
38
09160-06082
Шайба
39
09200-05014
Штифт
