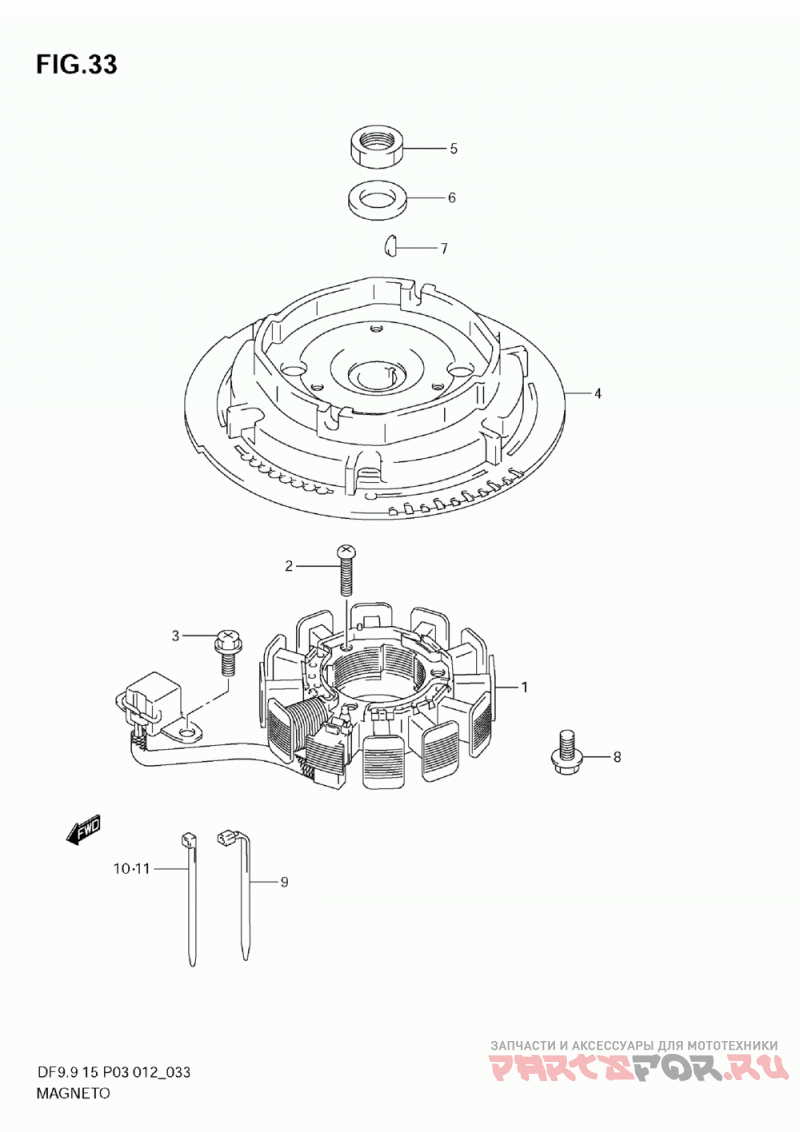

Magneto (df9.9th)
Suzuki Marine DF9.9/DF15 L2
| # | oem код | название | цена |
|---|---|---|---|
1 | 32120-94J10 Coil Comp, Stato | Coil Comp, Stato | |
2 | 09125-06035 Screw Clutch Co | Screw Clutch Co | |
3 | 02162-05127 Поршень комплект (увел1,0) | Поршень комплект (увел1,0) | |
4 | 32102-94J10 Flywheel Comp, M | Flywheel Comp, M | |
5 | 09140-14008 Nut 14mm | Nut 14mm | |
6 | 59171-94J00 Washer, Flywheel | Washer, Flywheel | |
7 | 08341-31039 3 Mm Woodruff K | 3 Mm Woodruff K | |
8 | 01550-06127 Болт | Болт | |
9 | 09407-11401 Clamp, L:95 | Clamp, L:95 | |
10 | 09407-10404 Зажим | Зажим | |
11 | 09407-10404 Зажим | Зажим |
