Drive shaft housing (df9.9t) для лодочных моторов Suzuki Marine DF9.9/DF15 L2 (2012)

Москва и регионы России

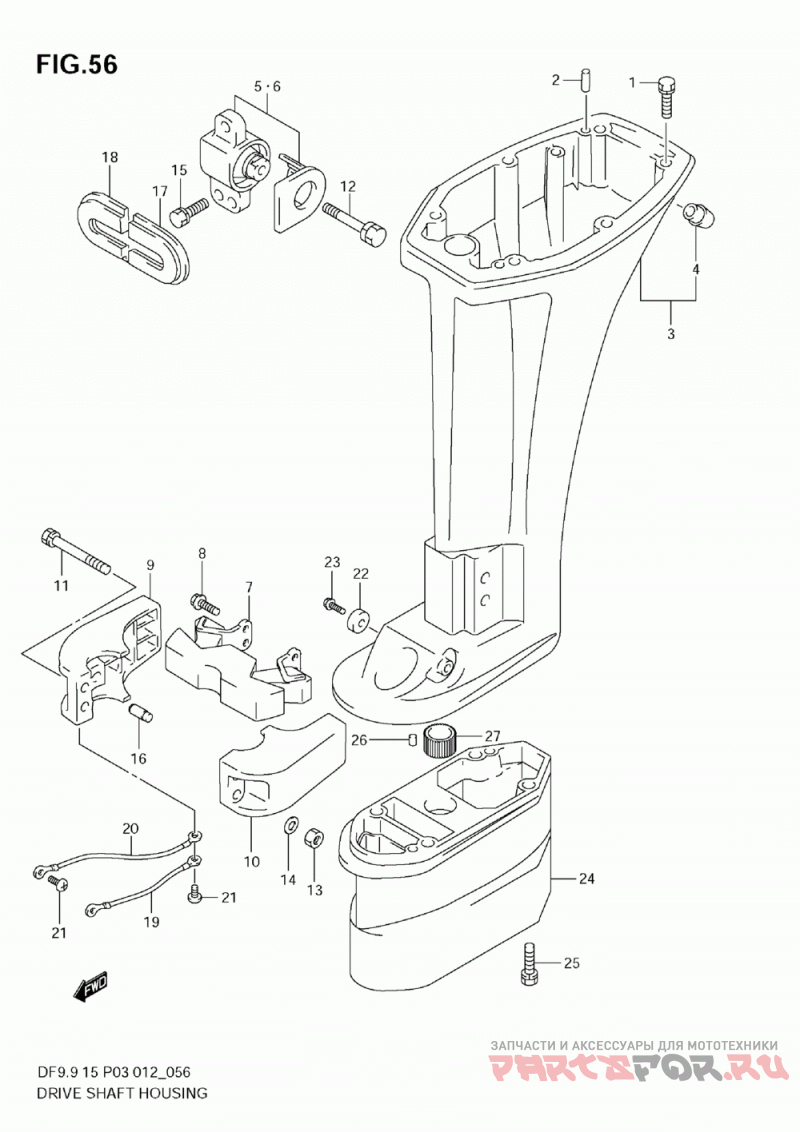

Drive shaft housing (df9.9t)

Suzuki Marine DF9.9/DF15 L2

Drive shaft housing (df9.9t)

#

oem код

название

цена

1

Bolt, 8x30

Bolt, 8x30

2

Штифт

Штифт

3

52110-94JC0-0EP

Housing, Drive S (black)

Housing, Drive S (black)

4

Pipe, Exhaust

Pipe, Exhaust

5

Mount Comp, Uppe

Mount Comp, Uppe

6

Mount Comp, Uppe

Mount Comp, Uppe

7

Mount Comp, Lowe

Mount Comp, Lowe

8

Bolt, 8x22

Bolt, 8x22

9

54211-94J20-0EP

Cover, Lower Mo (black)

Cover, Lower Mo (black)

10

54221-94J20-0EP

Cover, Lower Mou (black)

Cover, Lower Mou (black)

11

Bolt, 8x40

Bolt, 8x40

12

Bolt, 8x40

Bolt, 8x40

13

Гайка

Гайка

14

Шайба

Шайба

15

Bolt, 8x30

Bolt, 8x30

16

Pin, Lower Mount

Pin, Lower Mount

17

Seal Upper, Mou

Seal Upper, Mou

18

Seal, Upper Moun

Seal, Upper Moun

19

Lead, Clamp To S

Lead, Clamp To S

21

Винт

Винт

22

Anode, Protectio

Anode, Protectio

23

Bolt, Protection

Bolt, Protection

24

52131-94J20-0EP

Case, Extension (w/transom(x))

Case, Extension (w/transom(x))

25

Bolt, 8x30 (w/transom(x))

Bolt, 8x30 (w/transom(x))

26

Pin (w/transom(x))

Pin (w/transom(x))

27

Bush (w/transom(x))

Bush (w/transom(x))
