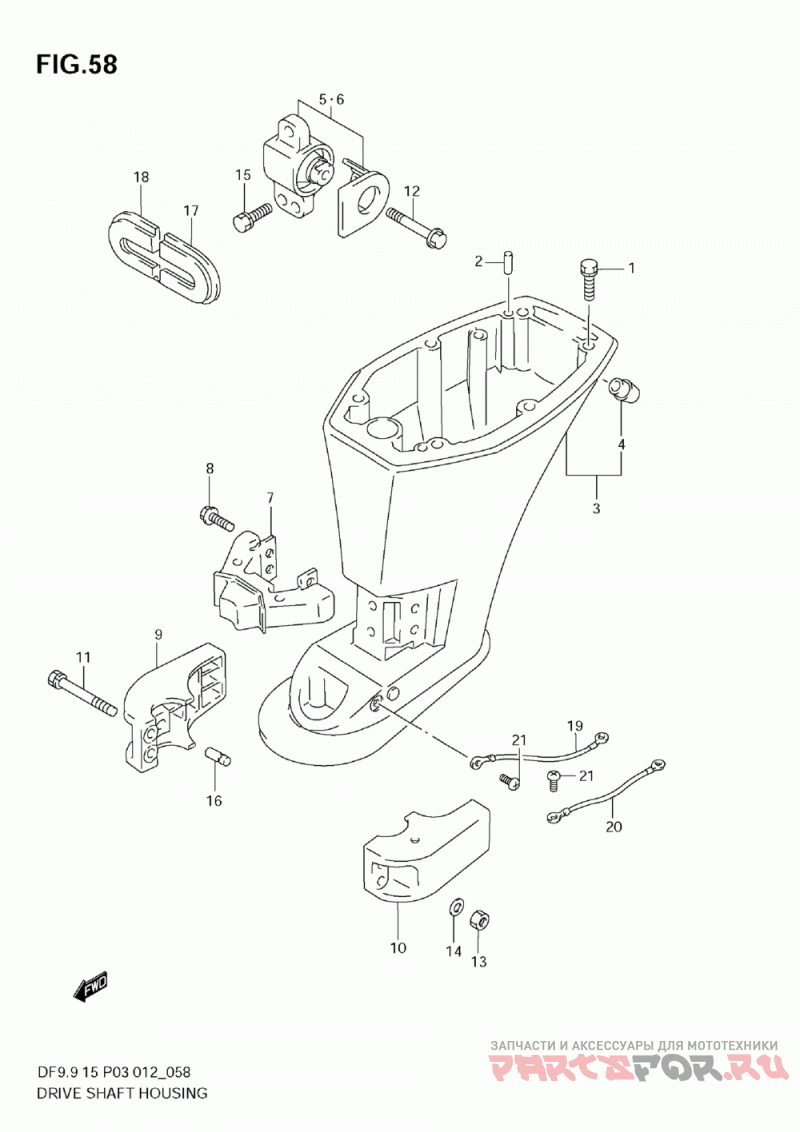

Drive shaft housing (df15)

Suzuki Marine DF9.9/DF15 L2

Suzuki Marine
#oem кодцена
1
09116-08122
Bolt, 8x30
2
09202-06023
Штифт
4
43112-99E00
Pipe, Exhaust
5
54180-93E01
Mount Comp, Uppe
6
54190-93E01
Mount Comp, Uppe
7
54160-93E02
Mount, Lower
8
09116-08137
Bolt, 8x22
9
54211-94J20-0EP
Cover, Lower Mo ( (black) )
10
54221-94J20-0EP
Cover, Lower Mou ( (black) )
11
09116-08138
Bolt, 8x40
12
09116-08138
Bolt, 8x40
13
29141-93J10
Гайка
14
09160-08082
Шайба
15
09116-08122
Bolt, 8x30
16
54213-93901
Pin, Lower Mount
17
54144-94J00
Seal, Upper Moun
18
54145-94J00
Seal, Upper Moun
19
36894-95201
Lead, Clamp To S
21
29125-93J10
Винт
3-1
52110-93E70-0EP
Housing, Drive S (w/transom(s) (black) )
3-2
52110-94J20-0EP
Housing, Drive (w/transom(l) (black) )
