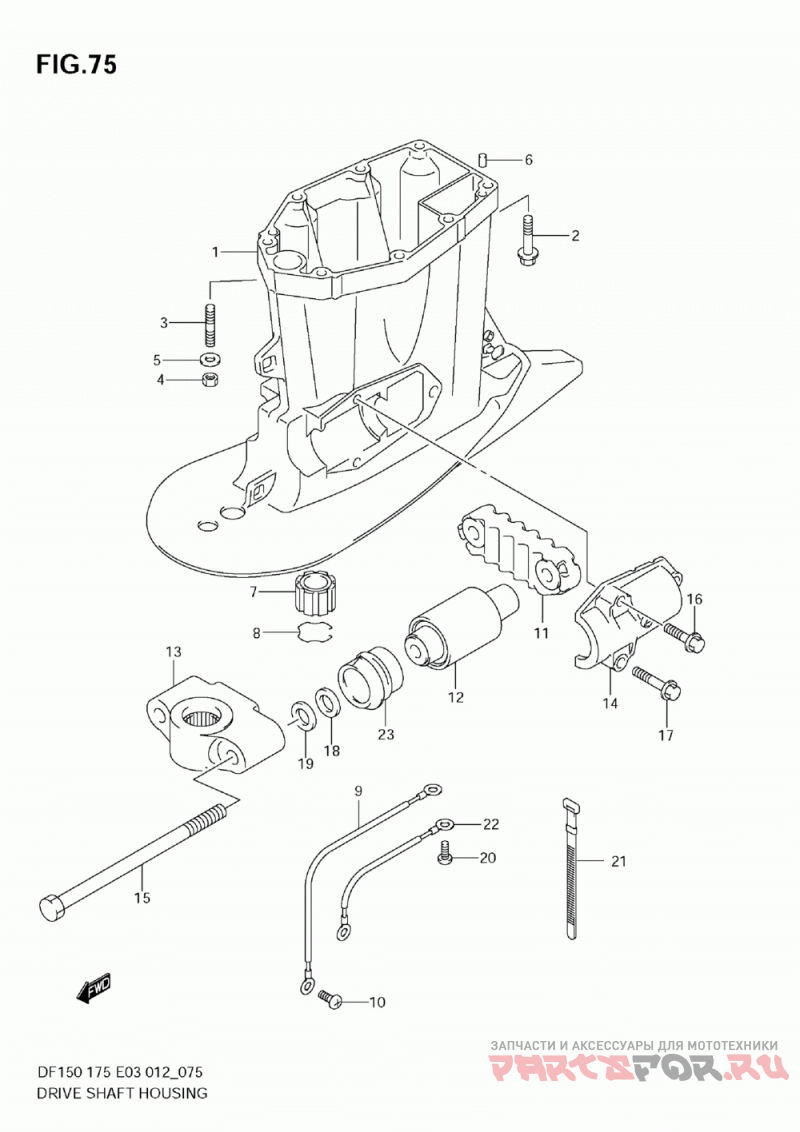

Drive shaft housing (df150t) для лодочных моторов Suzuki Marine DF150/DF175 L2 (2012)

Drive shaft housing (df150t)

Suzuki Marine DF150/DF175 L2

oem код

название

цена

09108-10150

Bolt, Drive Shaf (transom(l))

29141-93J20

Nut (transom(l))

09160-10141

Washer, 10.5x19x (transom(l))

09202-08006

Штифт

57130-87D10

Bush, Drive Shaf (transom(x))

09387-38002

Ring, Snap (transom(x))

Lead Swivel

Screw 6x10 (sus

Mount, Lower Thr

Mount Comp, Lowe

Bracket, Lower M

Cover, Lower Mou

Bolt, Upper Moun

Bolt, 10x35

Bolt, 10x50

Washer, Lower Mo

Washer, Lower Mo

Screw 6x10 (sus

Зажим

Lead, Clamp To S

Mount, Lower Sid

1-1

52111-96J00-0EP

Housing, Drive S (transom(l))

1-2

52111-96J10-0EP

Housing, Drive S (transom(x))

2-1

09116-10139

Bolt, Drive Shaf (transom(l))

2-2

09116-10139

Bolt, Drive Shaf (transom(x))
