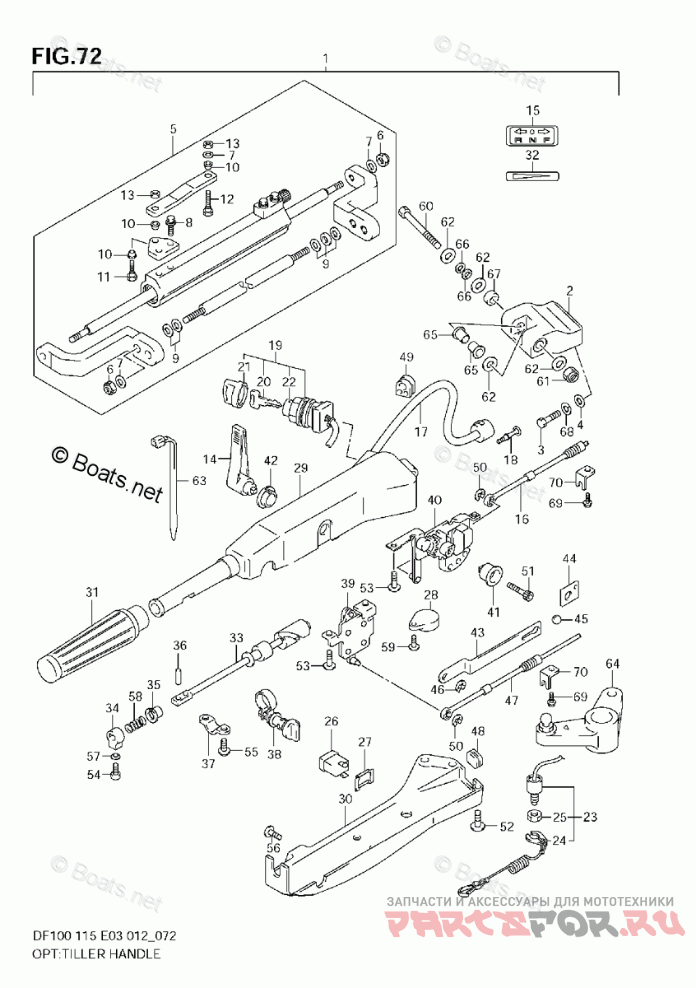

Opt:Tiller Handle

Suzuki Marine DF100TX

Suzuki Marine
#oem кодцена
1
63002-90J26-0EP
KIT, TILLER HANDLE (BLACK)
2
43761-90J02-0EP
BRACKET, TILLER HANDLE *{BLACK}*
3
43769-90J00
BOLT, TILLER HANDLE
4
09160-12066
WASHER (12.5X22X2.5)
5
43770-90J00
DAMPER ASSY, STEERING
6
43778-90J00
NUT, ROD
7
43779-90J00
WASHER, ROD
8
67725-90J00
BOLT, DRAG LINK PLATE
9
43781-90J00
SPACER/WASHER SET
10
67734-90J00
BUSH, DRAG LINK
11
67725-90J10
BOLT, DRAG LINK
12
67725-90J20
BOLT, DRAG LINK
13
67726-90J00
NUT, DRAG LINK
14
21111-87J10-0EP
LEVER, SHIFT (BLACK)
15
21131-96010
MARK, SHIFT
16
23230-90J00
CABLE, SHIFT
17
36620-90J20
WIRE ASSY, HANDLE
18
36615-96300
TERMINAL
19
37110-87J20
SWITCH ASSY, IGNITION
20-11
37141-99EA0
KEY (941)
20-5
37141-99E40
KEY (935)
20-10
37141-99E90
KEY (940)
20-9
37141-99E80
KEY (939)
20-8
37141-99E70
KEY (938)
20-7
37141-99E60
KEY (937)
20-6
37141-99E50
KEY (936)
20-1
37141-99E00
KEY (931)
20-4
37141-99E30
KEY (934)
20-3
37141-99E20
KEY (933)
20-2
37141-99E10
KEY (932)
20-12
37141-99EB0
KEY (942)
21
37143-99E00
CAP, KEY
22
37149-93J00
CAP, CYLINDER BODY
23
37820-87J02
SWITCH ASSY, EMERGENCY
24
37823-92E01
PLATE
25
37826-92E00
NUT
26
37850-87J00
SWITCH ASSY, TRIM
27
37852-87J00
PLATE, TRIM SWITCH
28
38500-92X50
BUZZER
29
63111-87J10-0EP
HOUSING, TILLER HANDLE *{BLACK}*
30
63121-87J03
COVER, UNDER
31
63210-93E30
GRIP, HANDLE
32
63215-93110
MARK, HANDLE GRIP
33
63221-87J00
SHAFT, THROTTLE
34
63223-92D00
STOPPER, HANDLE ROD
35
63225-93200
BUSH, HANDLE ROD
36
63227-93200
PIN, HANDLE ROD
37
63235-87J00
PLATE, THROTTLE SHAFT
38
63240-87J00
ADJUSTER, THROTTLE
39
63250-87J01
ARM ASSY, THROTTLE
40
63260-87J02
GEAR ASSY, SHIFT
41
63261-87J00
BUSH, SHIFT GEAR
42
63262-87J00
BUSH, SHIFT LEVER
43
63271-87J00
PLATE, LOCK
44
63272-87J00
PLATE, BALL GUIDE
45
63273-87J00
BALL
46
63274-87J00
E RING
47
63610-90J00
CABLE, THROTTLE
48
63625-99E00
GROMMET, THROTTLE CABLE
49
63626-99E01
GROMMET, WIRE HARNESS
50
67292-87J00
E RING
51
09106-08099
BOLT (8X50)
52
09125-05047
SCREW (5X14)
53
09125-06069
SCREW (6X12)
54
09126-06015
SCREW (6X23)
55
09136-05008
SCREW (5X12)
56
09139-02003
SCREW (2X6)
57
09163-06001
LOCK WASHER
58
09440-12027
SPRING
59
02142-05207
SCREW
60
09100-10264
BOLT (10X80)
61
09159-10050
NUT
62
09160-10114
WASHER (10.5X22X1.5)
63
09407-14403
CLAMP (L:125)
64
19140-90J10
LEVER, THROTTLE
65
09306-10020
BUSH
66
09164-10016
WASHER
67
43768-90J01
SPACER, TILLER HANDLE
68
29162-93J20
WASHER LOCK
69
63611-87J00
BOLT, CLAMP BRACKET
70
63612-87J00
BRACKET, CLAMP
