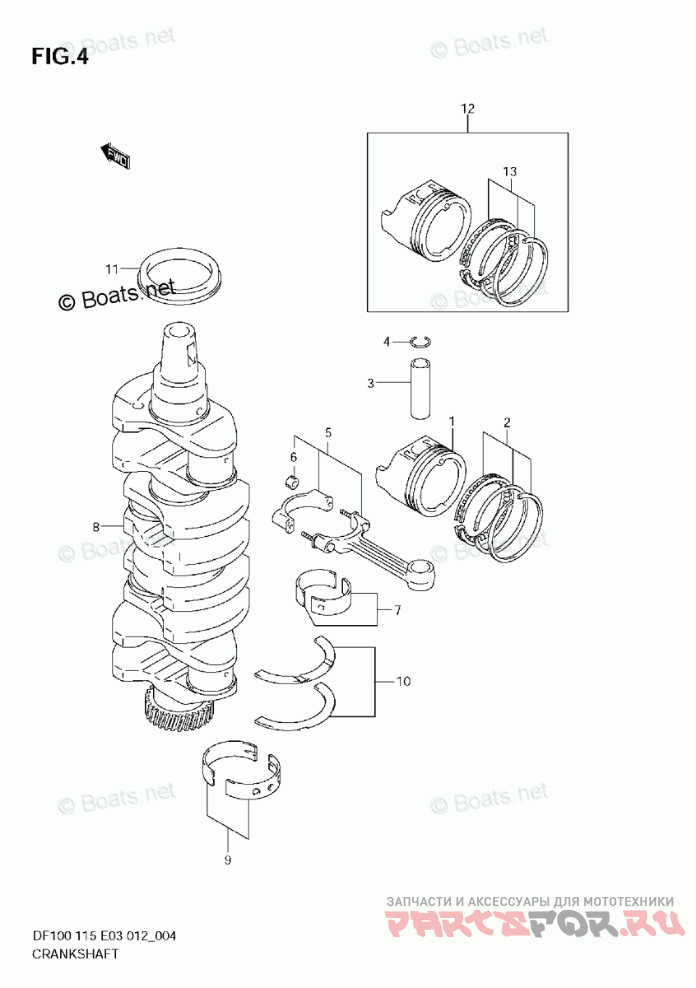

CRANKSHAFT

Suzuki Marine DF100TX

Suzuki Marine
#oem кодцена
1
12111-90J01
PISTON
2
12140-86FA0
RING SET, PISTON
3
12151-86FA0
PIN, PISTON
4
09381-21002
CIRCLIP
5
12160-92J00
CONNROD ASSY
6
09159-08121
NUT
7-1
12100-92841-0A0
BEARING SET, CONNROD
7-2
12100-92840-025
BEARING SET, CONNROD(US:0.25) *{OPT}*
8
12220-92J00
CRANKSHAFT
9-4
12340-85FB3-0D0
BEARING SET, CRANKSHAFT *{YELLOW}*
9-1
12340-85FB3-0A0
BEARING SET, CRANKSHAFT *{GREEN}*
9-5
12340-85FB3-0E0
BEARING SET, CRANKSHAFT *{BLUE}*
9-3
12340-85FB3-0C0
BEARING SET, CRANKSHAFT *{NON}*
9-2
12340-85FB3-0B0
BEARING SET, CRANKSHAFT *{BLACK}*
9-6
12300-85854-0AA
BEARING SET, CRANKSHAFT (US:0.25) *{OPT RED/GREEN}*
9-7
12300-85854-0BA
BEARING SET, CRANKSHAFT (US:0.25) *{OPT RED/BLACK}*
9-8
12300-85854-0CA
BEARING SET, CRANKSHAFT (US:0.25) *{OPT RED}*
9-9
12300-85854-0DA
BEARING SET, CRANKSHAFT (US:0.25) *{OPT RED/YELLOW}*
9-10
12300-85854-0EA
BEARING SET, CRANKSHAFT (US:0.25) *{OPT RED/BLUE}*
10-1
12300-85830
BEARING SET, CRANK THRUST
10-2
12300-85830-012
BEARING SET, CRANK THRUST (OS:0.12) *{OPT}*
11
09283-52004
OIL SEAL (52X70X10)
12
12100-90J01-050
PISTON SET (OS:0.50) *{OPT}*
13
12140-86FA0-050
RING SET, PISTON (OS:0.50) *{OPT}*
14
SPECIAL-NOTE
THERE IS A PLAIN BEARING KIT AVAILABLE FOR THIS MODEL PART NUMBER 99104-DFKIT-005
