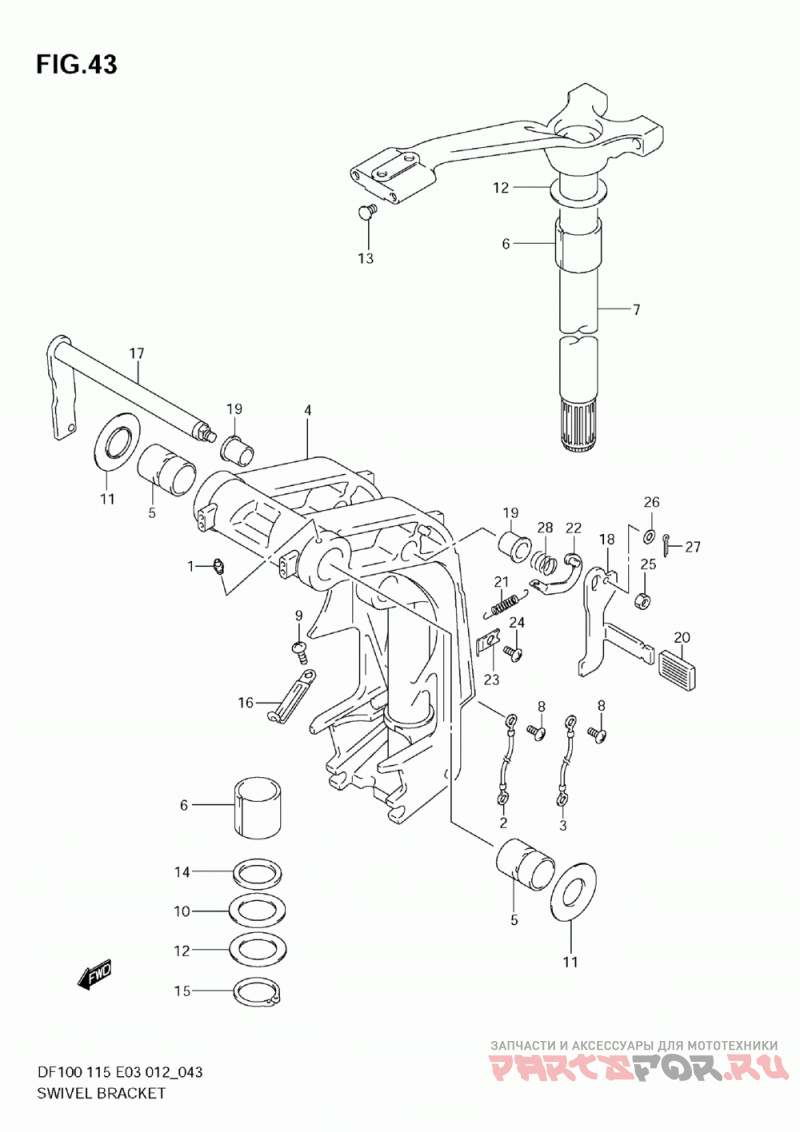

Swivel bracket (df115t) для лодочных моторов Suzuki Marine DF100/DF115 L2 (2012)

Swivel bracket (df115t)

Suzuki Marine DF100/DF115 L2

oem код

название

цена

Lead, Clamp To S

Lead, Clamp To S

Bushing, Swivel

Bush, Steering

Винт

Screw 6x10 (sus

Washer 39.5x64x

Шайба

Регулировочная прокладка

09250-10001

Заглушка

09282-39001

Oil Seal 39x51x

09380-38003

Пружинное стопорное кольцо

Зажим

Lever Comp, Tilt

Lever, Tilt Lock

Bush, Tilt Stop

Rubber Lock Arm

Spring, Tilt Loc

Link, Tilt Lock

Bracket, Tilt Lo

Screw 6x10 (sus

Гайка

Шайба

Штифт

Пружина

1-1

22511-99011

Nipple, Grease (transom(l))

1-2

22511-99011

Nipple, Grease (transom(x))

4-1

43111-90J21-0EP

Bracket, Swivel( (transom(l))

4-2

43111-90J30-0EP

Bracket, Swivel (transom(x))

7-1

43750-90J22-0EP

Bracket, Steeri (transom(l))

7-2

43750-90J32-0EP

Bracket, Steerin (transom(x))
