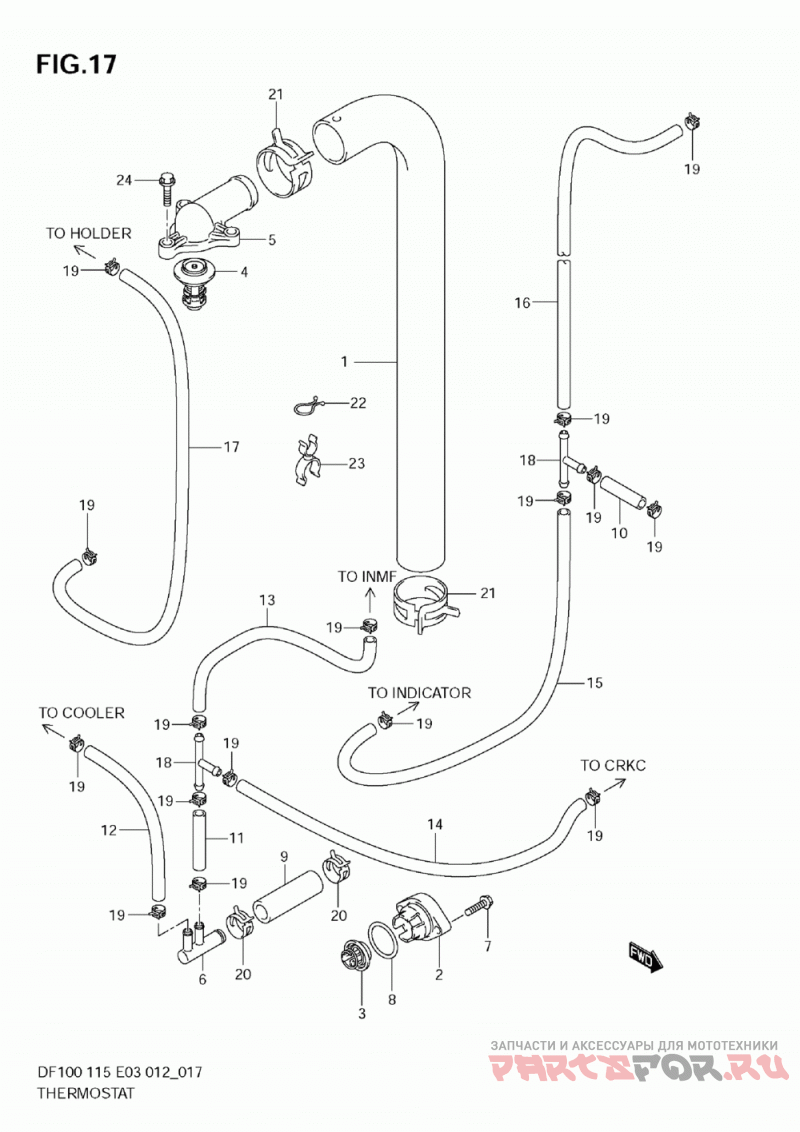

Термостат

Suzuki Marine DF100/DF115 L2

Suzuki Marine
#oem кодцена
1
11196-90J00
Hose, Water Retu
2
17611-90J00-0EP
Cover, Wtr Press (black)
3
17660-90J00
Valve Comp, Wate
5
17681-90J01
Cover, Thermosta
6
17711-90J00
3way, Water Hose
7
09116-06121
Болт
8
09280-26006
O Ring D:3.1 Id
9
09352-11153-600
Hose, 11x15x600 (l:600->50 Holder To 3 Way )
10
09352-50903-600
Hose, 5x9x600 (l:600->450 Crkc Upper To 3 Way )
11
09352-50903-600
Hose, 5x9x600 (l:600->450 Crkc Upper To 3 Way )
12
09352-50903-600
Hose, 5x9x600 (l:600->450 Crkc Upper To 3 Way )
13
09352-50903-600
Hose, 5x9x600 (l:600->450 Crkc Upper To 3 Way )
14
09352-50903-600
Hose, 5x9x600 (l:600->450 Crkc Upper To 3 Way )
15
09352-50903-600
Hose, 5x9x600 (l:600->450 Crkc Upper To 3 Way )
16
09352-50903-600
Hose, 5x9x600 (l:600->450 Crkc Upper To 3 Way )
17
09352-50903-00B
Hose (l:2000->690 Cooler To Holder )
18
09367-06002
3 Way Joint
19
09401-08413
Зажим
20
17838-90J00
Зажим
21
09401-31407
Зажим
22
09408-00024
Clamp Fuel Hose
23
09408-00069
Поршень комплект (увел1,0)
24
01550-06257
Болт
4-1
17670-90J00
Thermostat, Wate
4-2
17670-90J10
Thermostat (opt)
