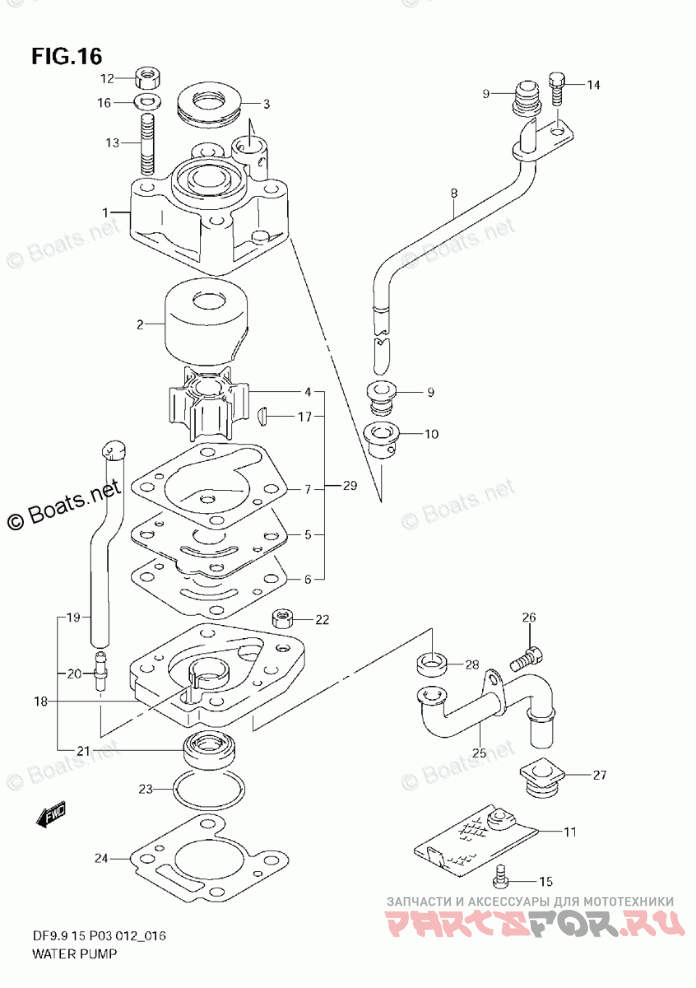

Water Pump (DF9.9TH)

Suzuki Marine DF 9.9TL

Suzuki Marine
#oem кодцена
1
17411-94J00
CASE, WATER PUMP
2
17413-94J00
SLEEVE, WATER PUMP CASE
3
17417-93910
GROMMET, PUMP CASE
4
17461-93903
IMPELLER, WATER PUMP
5
17471-93902
PANEL, PUMP CASE UNDER
6
17472-93911
GASKET, PUMP CASE PANEL
7
17473-94J00
GASKET, WATER PUMP CASE
8-2
17560-94JA1
TUBE, WATER (X) *{W/TRANSOM(X)}*
8-1
17560-94J21
TUBE, WATER (L) *{W/TRANSOM(L)}*
9
17563-94J00
GROMMET, WATER TUBE
10
17564-93900
BUSH, WATER PUMP CASE
11
17631-92D01
FILTER, WATER
12
29141-93J00
NUT, WATER PUMP CASE
13
09108-06101
STUD BOLT
14
09116-06094
BOLT (6X15)
15
09125-06063
SCREW (6X10)
16
09160-06082
WASHER (6.5X13X1.0)
17
09420-03005
KEY
18
17450-94J11
HOUSING, WATER INLET
19
17453-93901
DRAIN, WATER INLET
20
17454-94J00
UNION, WATER INLET DRAIN
21
09289-12003
OIL SEAL (12X26X10)
22
29141-93J00
NUT, WATER INLET
23
59291-94J10
O RING, WATER INLET HSG
24
17452-94J00
GASKET, WATER INLET HSG
25
17520-93902
TUBE, WATER INLET
26
09100-06106
BOLT (6X9)
27
59317-94J00
GROMMET
28
59317-94J10
GROMMET
29
17400-94J00
KIT, WATER PUMP REPAIR *{OPT}*
