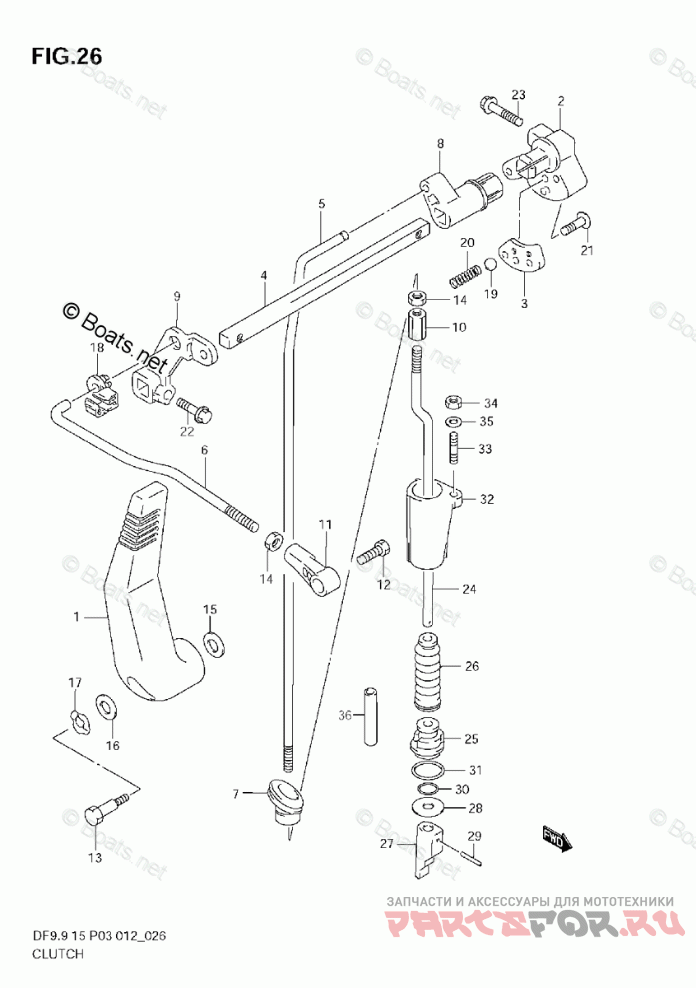

Clutch (DF9.9TH)

Suzuki Marine DF 9.9THL

Suzuki Marine
#oem кодцена
1
21110-93E03
LEVER, CLUTCH
2
21120-93E10
LEVER, CLUTCH NOTCH
3
21122-94J01
PLATE, CLUTCH NOTCH
4
21211-93EL0
SHAFT, CLUTCH LEVER
5
23111-94JA0
ROD, CLUTCH
6
23115-93E10
LINK, CLUTCH LEVER
7
23131-93900
BOOT, CLUTCH ROD
8
23211-93E01
ARM, CLUTCH ROD
9
23210-93E00
LEVER, CLUTCH CONTROL
10
23311-95DL0
TURNBUCKLE, CLUTCH ROD
11
23312-94JL0
CONNECTOR, CLUTCH LINK
12
09111-06064
BOLT (6X17)
13
09111-06069
BOLT (6X28.8)
14
29141-93J00
NUT
15
09160-06082
WASHER (6.5X13X1.0)
16
09160-08045
WASHER (8X22X1)
17
09164-08017
WASHER
18
09209-09007
LINKAGE
19
09260-12003
BALL
20
09440-09041
SPRING
21
02142-06207
SCREW
22
01550-06207
BOLT
23
01550-06257
BOLT
24-2
25111-93901
ROD, SHIFT (L) *{W/TRANSOM(X)}*
24-1
25111-93911
ROD, SHIFT (S) *{W/TRANSOM(L)}*
25
25211-93901
GUIDE, SHIFT ROD
26
25222-93901
BOOT, SHIFT ROD
27
25311-93E11
CAM, SHIFT
28
09160-05047
WASHER (5.5X24X1.6)
29
09205-02004
SPRING
30
09280-05005
O RING (D:3.5,ID:4.9)
31
59291-94J00
O RING (D:3.6 ID:18.6)
32
25215-94J00
STOPPER, SHIFT ROD GUIDE
33
09108-05007
STUD BOLT
34
09140-05005
NUT
35
09160-05029
WASHER (5.5X12X0.8)
36
09351-50803-00A
HOSE (5X8X1000) *{L:1000->30}*
