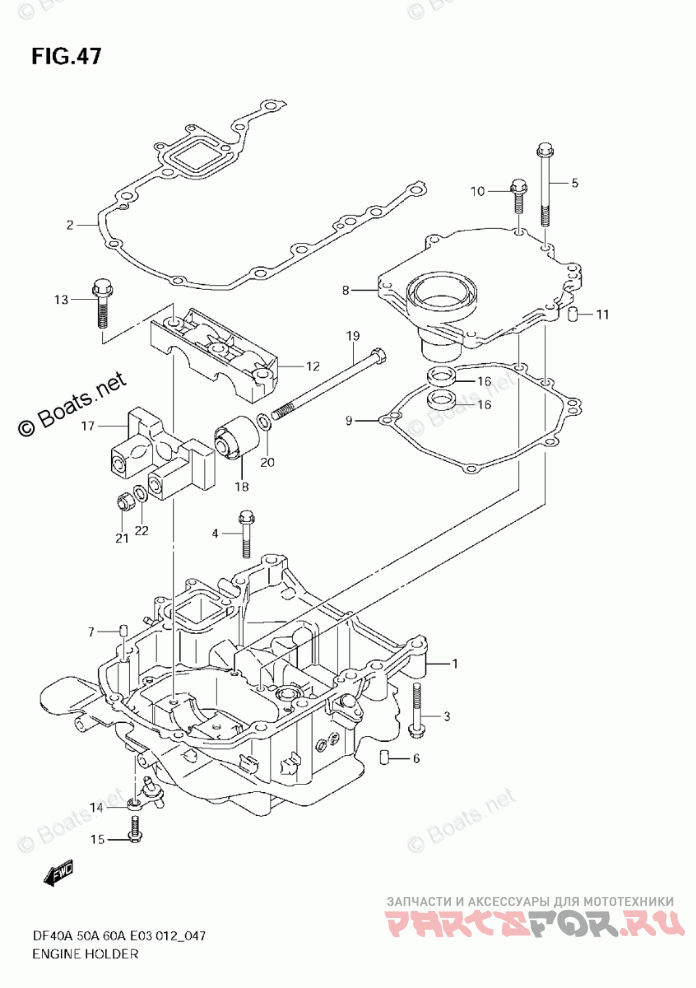

Engine Holder (DF60A E3)

Suzuki Marine DF 60ATL

Suzuki Marine
#oem кодцена
1-1
51110-88L00-0EP
HOLDER, ENGINE (BLACK)
1-2
51110-88L00-Y5S
HOLDER, ENGINE (WHITE)
2
51211-88L00
GASKET, ENGINE HOLDER
3
09116-08117
BOLT (8X55)
4
01550-0845A
BOLT
5
01550-0885A
BOLT
6
09202-08006
PIN
7
09202-08006
PIN
8
51122-88L00
COVER, MOUNT CASE
9
51123-88L00
GASKET, MOUNT CASE COVER
10
01550-0825A
BOLT
11
09202-08006
PIN
12
54137-88L00
COVER, UPPER MOUNT
13
09116-10176
BOLT
14
51170-88L00
BRACKET, WATER INDICATOR
15
29116-93J00
BOLT, WATER INDICATOR UNION (W/WASHER)(6X20)
16
09282-17011
OIL SEAL (16.5X28X6)
17
54120-88L00
MOUNT, UPPER THRUST
18
54130-88L00
MOUNT, UPPER
19
54166-95J02
BOLT, UPPER MOUNT
20
54114-88L00
WASHER, UPPER MOUNT BOLT (12.5X25X3)
21
09159-12014
NUT
22
54114-90J01
WASHER, UPPER THRUST MOUNT (12.5X22X3)
