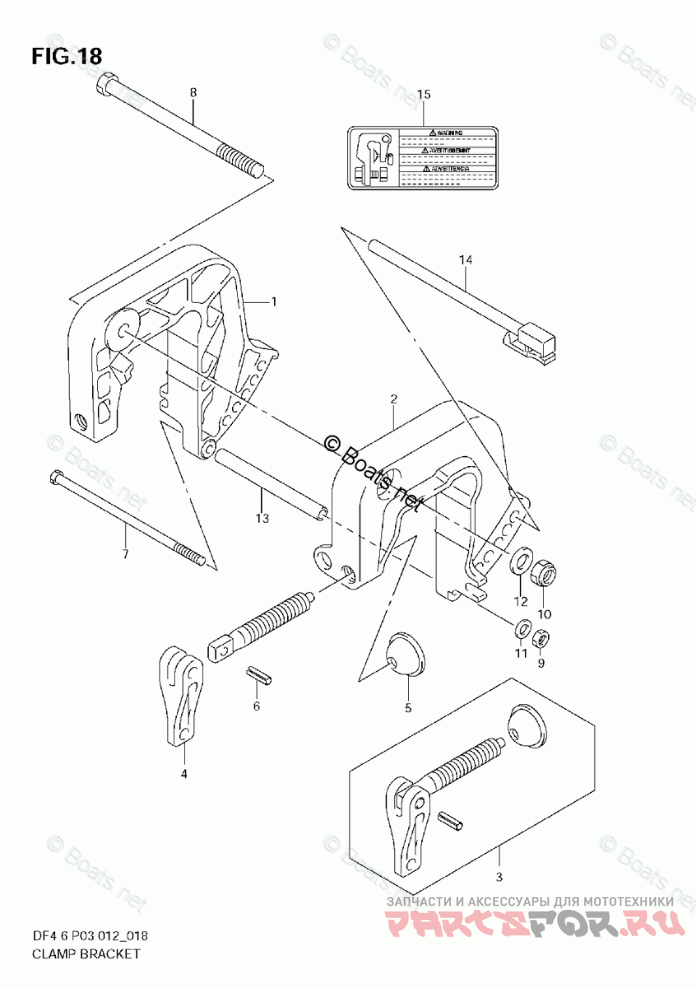

Clamp Bracket для лодочных моторов Suzuki Marine DF 4L (2012)

Москва и регионы России

Clamp Bracket

Suzuki Marine DF 4L

Clamp Bracket

#

oem код

название

цена

1

41111-91J20-0EP

BRACKET, CLAMP STBD (BLACK)

BRACKET, CLAMP STBD (BLACK)

2

41121-91J20-0EP

BRACKET, CLAMP PORT (BLACK)

BRACKET, CLAMP PORT (BLACK)

3

SCREW, ASSY CLAMP *{OPT}*

SCREW, ASSY CLAMP *{OPT}*

4

HANDLE, CLAMP

HANDLE, CLAMP

5

PLATE, CLAMP

PLATE, CLAMP

6

SPRING PIN (6X25)

SPRING PIN (6X25)

7

BOLT (6X140)

BOLT (6X140)

8

BOLT (10X150)

BOLT (10X150)

9

NUT (6MM)

NUT (6MM)

10

NUT

NUT

11

WASHER (6.5X13X1.0)

WASHER (6.5X13X1.0)

12

WASHER (10.5X19X2)

WASHER (10.5X19X2)

13

SPACER (6.5X10.5X104)

SPACER (6.5X10.5X104)

14

PIN, TILT LOCK

PIN, TILT LOCK

15

MARK, CLAMP BRKT

MARK, CLAMP BRKT
