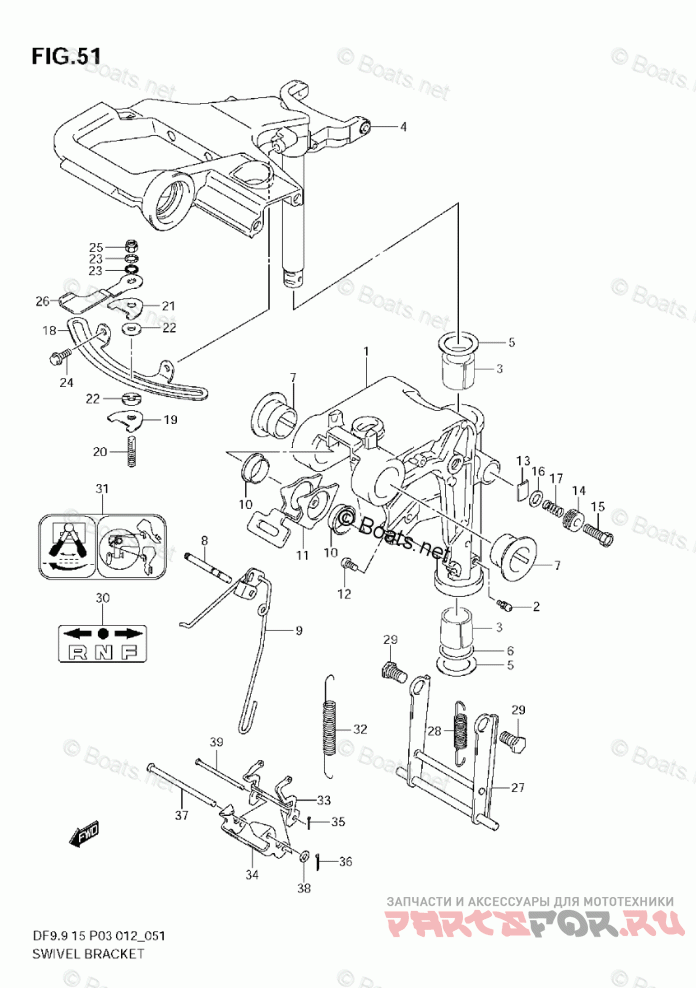

Swivel Bracket (DF15)

Suzuki Marine DF 15L

Suzuki Marine
#oem кодцена
1
43111-94J30-0EP
BRACKET, SWIVEL (BLACK)
2
22511-99011
NIPPLE
3
43711-99J00
BUSH, STEERING
4
43750-94J20-0EP
BRACKET, STEERING (BLACK)
5
09160-27009
WASHER (27.5X47X2)
6
09280-27004
O RING (D:3.1,ID:26.2)
7
43211-87JL0
BUSH, SWIVEL SHAFT
8
41225-94502
PIN, RELEASE ARM
9
45250-94J00
LINK, RELEASE
10
09306-22006
BUSH
11
45261-94J00
LEVER, RELEASE
12
29125-93J10
SCREW, LEAD
13
43411-939L0
PLATE, STEERING ADJUSTER
14
43412-93900
COVER, STEERING ADJUST
15
09100-08232
BOLT (8X30)
16
09160-08082
WASHER (8.5X16X1.2)
17
29440-93J00
SPRING
18
43415-94J00
PLATE, STEERING ADJUSTER
19
43420-94J20
PLATE
20
43512-94JL0
SHAFT, STEERING ADJUSTER
21
43514-94J00
PLATE, FRICTION
22
43514-95J00
WASHER, FRICTION PLATE
23
43516-89J00
WASHER, STEERING ADJUSTER
24
29116-93J00
BOLT, ADJUSTER PLATE
25
09159-08059
NUT
26
43411-94J00
ADJUSTER, STEERING
27
45710-99JL0
ARM, SHALLOW DRIVE
28
45722-94J11
SPRING, ARM
29
09111-10032
BOLT (10X20.4)
30
21131-94J00
MARK, CLUTCH SHIFT
31
45269-94J00
MARK, REVERSE LOCK
32
45212-99J10
SPRING, REVERSE LOCK ARM
33
45231-99J10
ARM, REVERSE LOCK
34
45241-99JL1
LINK, REVERSE LOCK ARM
35
09204-01002
PIN
36
45247-99J00
PIN
37
09200-06061
PIN
38
09160-06082
WASHER (6.5X13X1.0)
39
09200-05014
PIN
