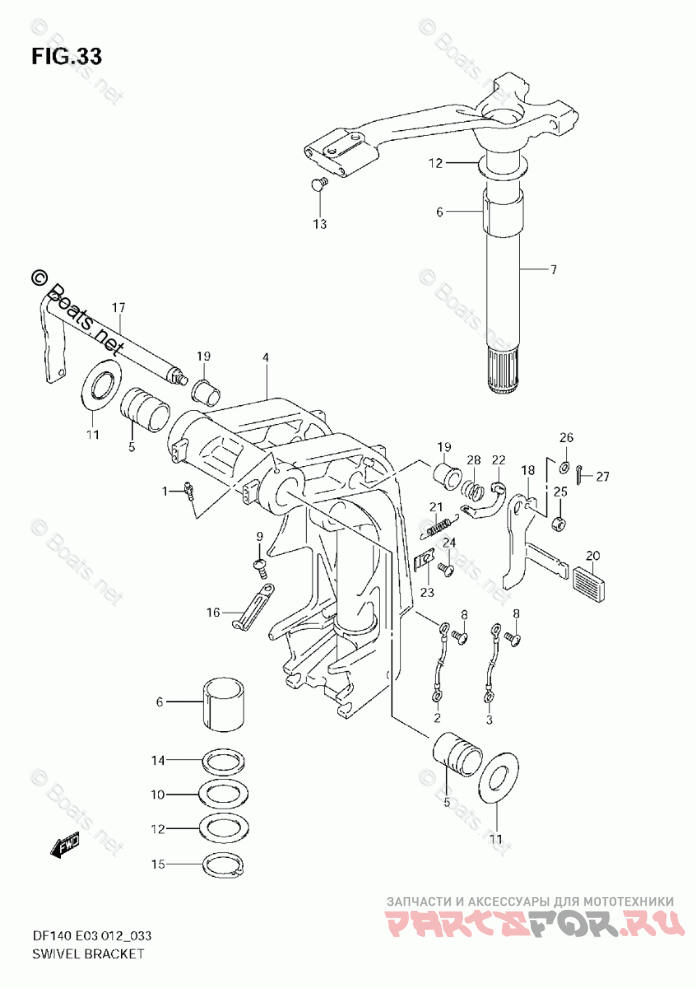

Swivel Bracket (DF140T) для лодочных моторов Suzuki Marine DF 140TX (2012)

Swivel Bracket (DF140T)

Suzuki Marine DF 140TX

oem код

название

цена

22511-99011

NIPPLE, GREASE

36894-95201

LEAD (CLAMP TO SWIVEL)

36894-87D00

LEAD (SWIVEL TO MOUNT BRKT)

4-2

43111-92J50-0EP

BRACKET, SWIVEL (BLACK) *{W/TRANSOM(X)}*

4-1

43111-92J40-0EP

BRACKET, SWIVEL (BLACK) *{W/TRANSOM(L)}*

43211-93J00

BUSH, CLAMP SHAFT SWIVEL

43711-97E00

BUSH, STEERING

7-1

43750-90J22-0EP

BRACKET, STEERING (BLACK) *{W/TRANSOM(L)}*

7-2

43750-90J32-0EP

BRACKET, STEERING (BLACK) *{W/TRANSOM(X)}*

SCREW (5X8)

SCREW (6X10)

WASHER (39.5X64X1.0)

WASHER

SHIM (39.5X64X0.3)

PLUG

OIL SEAL (39X51X5)

CIRCLIP

CLAMP

LEVER, TILT LOCK

LEVER, TILT LOCK PORT

41224-95E01

BUSH, TILT STOPPER ROD

41225-94400

RUBBER, TILT LOCK LEVER

41228-90J00

SPRING, TILT LOCK LEVER

41230-95E00

LINK, TILT LOCK LEVER

41233-95E10

BRACKET, TILT LOCK SPRING

SCREW (6X10)

NUT

WASHER (6.5X13X1.0)

PIN, COTTER

SPRING
