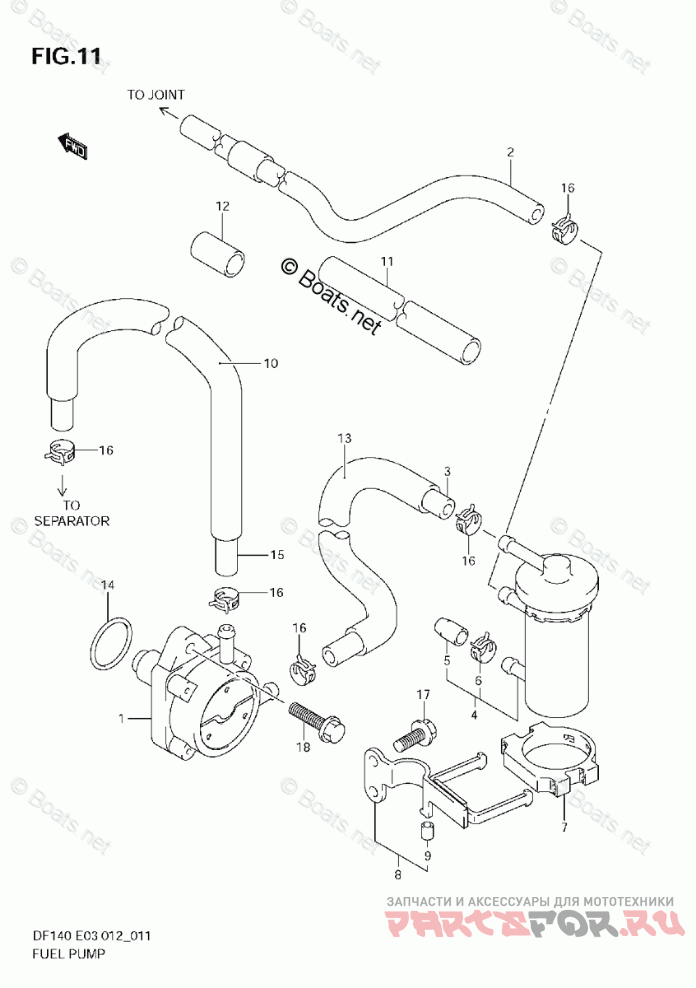

FUEL PUMP

Suzuki Marine DF 140TX

Suzuki Marine
#oem кодцена
1
15100-90J1V
PUMP, FUEL
2
15190-90J30
HOSE, FUEL (JOINT TO FILTER)
3
15192-90J11
HOSE, FUEL (FILTER TO PUMP)
4
15410-87J30
FILTER, FUEL
5
15419-87J00
CAP, FUEL FILTER
6
09401-11423
CLIP
7
15422-96J00
CLAMP, FUEL FILTER
8
15420-90J30
BRACKET, FUEL FILTER
9
09320-05016
CUSHION
10
18498-99E10
PROTECTOR, FUEL HOSE (610) *{L:610->450}*
11
18498-99E10
PROTECTOR, FUEL HOSE (610) *{L:610->510}*
12
18498-99E10
PROTECTOR, FUEL HOSE (610) *{L:610->180}*
13
18498-99E10
PROTECTOR, FUEL HOSE (610) *{L:610->230}*
14
09280-26005
O RING (D:2.4,ID:26.2)
15
09343-70503-600
HOSE, FUEL (PUMP TO SEPARATOR *{L:600->540}*
16
09401-11423
CLIP
17
01550-06167
BOLT
18
01550-06257
BOLT
