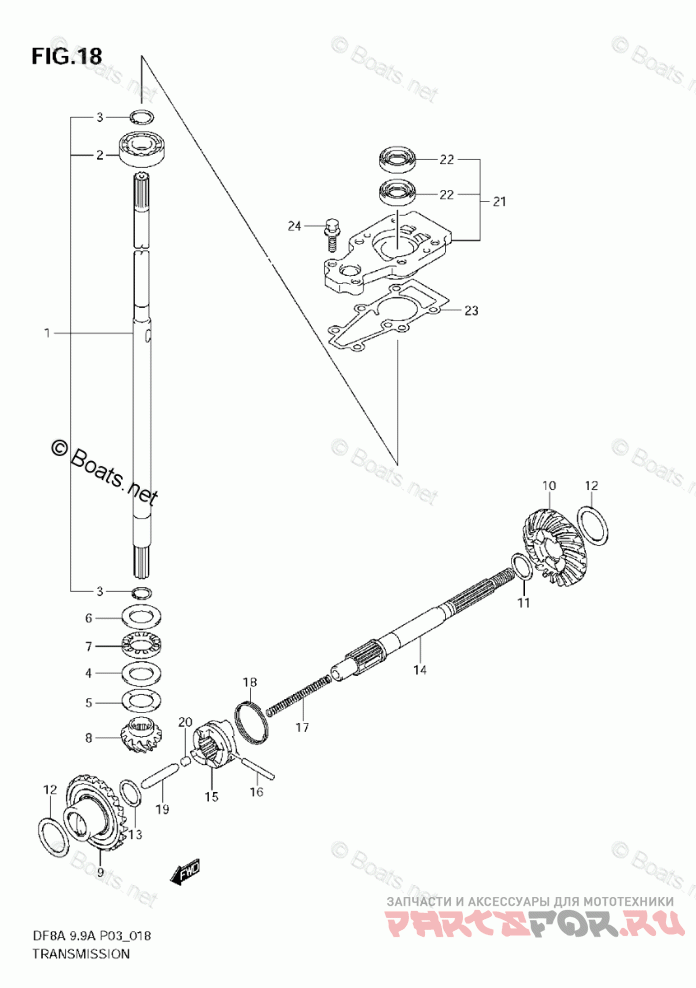

TRANSMISSION

Suzuki Marine DF 8AS

Suzuki Marine
#oem кодцена
1-2
57100-99J30
SHAFT ASSY, DRIVE (L)
1-1
57100-99J20
SHAFT ASSY, DRIVE (S)
2
08110-60020
BEARING
3
09380-15001
CIRCLIP
4
09160-20027
WASHER (20X35X2.75)
5-1
09181-20251
SHIM (20X34X1.0) *{PINION}*
5-6
09181-20246
SHIM (20X34X0.8)
5-5
09181-20244
SHIM (20X34X0.7)
5-4
09160-20044
SHIM (20X34X1.3)
5-3
09160-20043
SHIM (20X34X1.2)
5-2
09160-20042
SHIM (20X34X1.1)
5-7
09181-20248
SHIM (20X34X0.9)
6
09160-21009
WASHER (21X35X2.75) *{PINION THRUST UPR}*
7
09263-20024
BEARING (20X35X4.5) *{PINION THRUST}*
8
57311-94J00
PINION
9
57510-94J00
GEAR, FORWARD
10
57521-94J00
GEAR, REVERSE
11-8
09160-17042
WASHER (17X23X1.8)
11-7
09160-17027
WASHER (17X23X1.7)
11-3
09160-17025
WASHER (17X23X1.3)
11-5
09160-17026
WASHER (17X23X1.5)
11-6
09160-17041
WASHER (17X23X1.6)
11-1
09160-17024
WASHER (17X23X1.1) *{PROP SHAFT REV}*
11-9
09160-17028
WASHER (17X23X1.9)
11-2
09160-17039
WASHER (17X23X1.2)
11-4
09160-17040
WASHER (17X23X1.4)
12-2
09181-25162
SHIM (25X34X0.8)
12-3
09181-25164
SHIM (25X34X0.9)
12-7
09181-25181
SHIM (25X34X1.3)
12-6
09160-25042
SHIM (25X34X1.2)
12-5
09160-25041
SHIM (25X34X1.1)
12-4
09160-25040
SHIM (25X34X1.0)
12-1
09181-25160
SHIM (25X34X0.7) *{BACK UP}*
13
09181-15156
WASHER (15X22X1.5) *{PROP SHAFT FWD}*
14
57610-99J10
SHAFT, PROPELLER
15
57621-93902
SHIFTER, CLUTCH DOG
16
09202-04025
PIN (4X31)
17
59441-94J00
SPRING, RETURN
18
59441-99J00
SPRING, DOG
19
57631-93901
ROD, PUSH
20
57632-98500
PIN (6X6)
21
56130-99J10
HOUSING, DRIVE SHAFT
22
09282-13003
SEAL, DRIVE SHAFT OIL (12.5X25X7)
23
56132-99J00
GASKET, DRIVE SHAFT BRG HSG
24
09116-06121
BOLT, DRIVE SHAFT BRG HSG (6X25)
