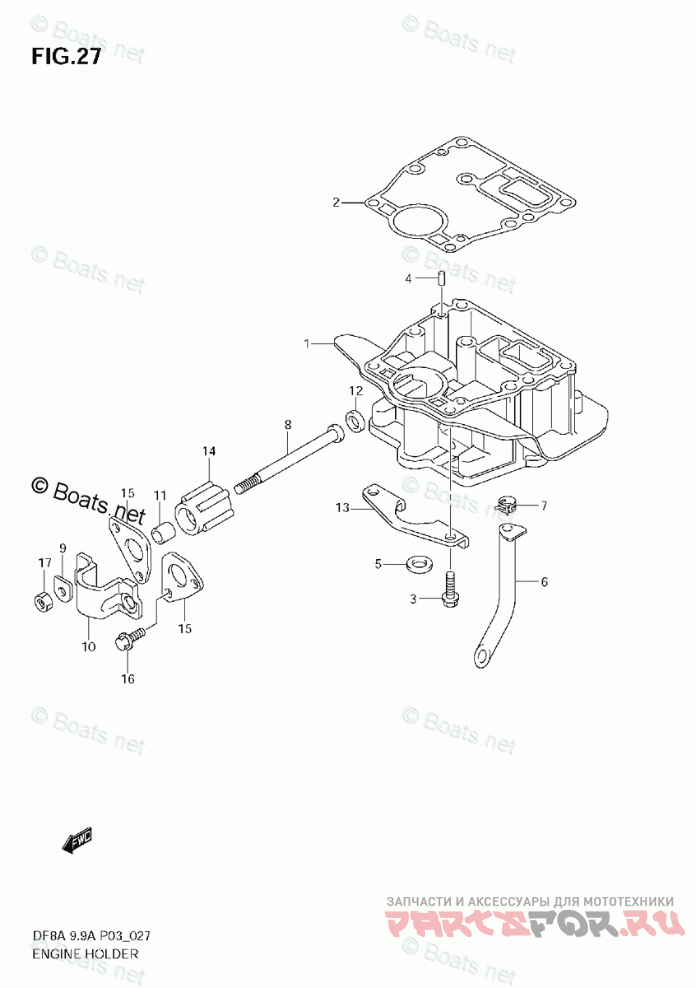

ENGINE HOLDER

Suzuki Marine DF 8AS

Suzuki Marine
#oem кодцена
1
51110-99J00
HOLDER, ENGINE
2
51211-99J00
GASKET, ENGINE HOLDER
3
09116-08122
BOLT (8X30)
4
09202-06023
PIN, KNOCK (6X10)
5
09282-12017
SEAL, DRIVE SHAFT UPPER OIL (11X24X4.5)
6
16515-99J00
HOSE, OIL
7
09401-15404
CLIP
8
54112-99J00
BOLT, UPR MOUNT (L:123)
9
54113-99J00
WASHER, UPR MOUNT BOLT
10
54120-99J00
MOUNT, UPR THRUST
11
54122-99J00
SPACER, UPR MOUNT (10.2X16X15
12
54125-99J00
STOPPER, UPR REVERSE THRUST
13-1
54126-99J00
STOPPER, UPR THRUST
13-2
54126-99JL0
STOPPER, UPR THRUST *{DF8A:110001~ DF9.9A:110001~}*
14
54130-99J00
MOUNT, UPPER
15
54148-99J00
COVER, UPR MOUNT
16
09116-08137
BOLT, UPR MOUNT COVER (8X22)
17
09140-10031
NUT, UPR MOUNT (M10)
