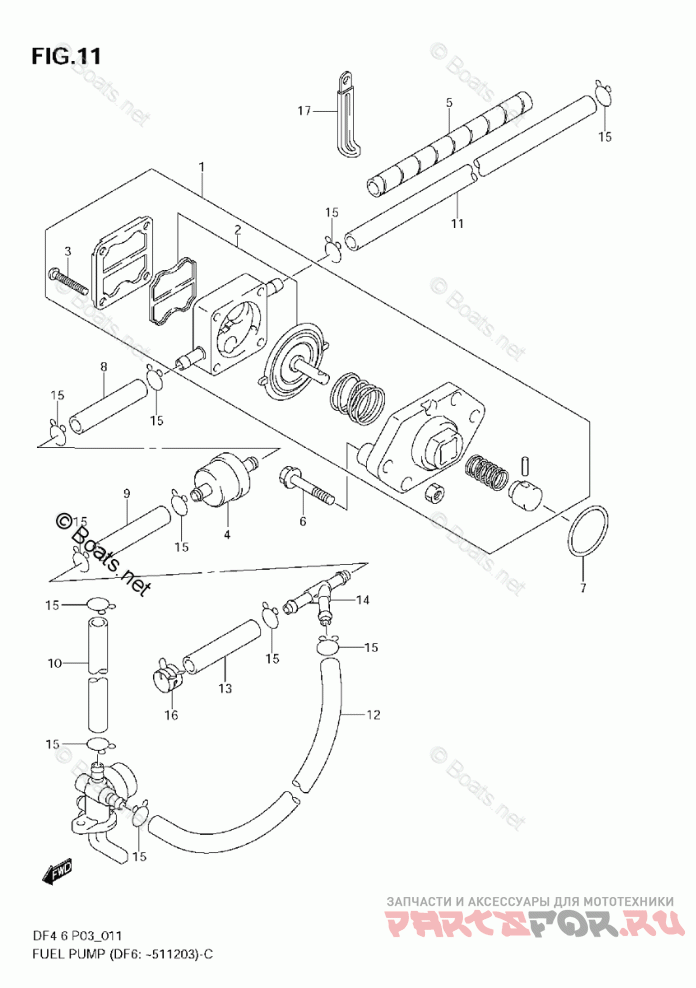

Fuel Pump (DF6: <511203)

Suzuki Marine DF 6L

Fuel Pump (DF6: <511203)

#

oem код

название

цена

1

PUMP ASSY, FUEL

PUMP ASSY, FUEL

2

DIAPHRAGM SET

DIAPHRAGM SET

3

SCREW

SCREW

4

FILTER

FILTER

5

PROTECTOR

PROTECTOR

6

BOLT (6X28)

BOLT (6X28)

7

O RING (D:2.0 ID:27.5)

O RING (D:2.0 ID:27.5)

8

09352-50903-600

HOSE, FUEL (FILTER TO PUMP) *{L:600->45 <-15211-91J00-380}*

HOSE, FUEL (FILTER TO PUMP) *{L:600->45 <-15211-91J00-380}*

9

09352-50903-600

HOSE, FUEL (ELB TO FILTER) *{L:600->45 <-15211-91J00-380}*

HOSE, FUEL (ELB TO FILTER) *{L:600->45 <-15211-91J00-380}*

10

09352-50903-600

HOSE, FUEL (TANK TO COCK) *{L:600->260 <-15211-91J00-380}*

HOSE, FUEL (TANK TO COCK) *{L:600->260 <-15211-91J00-380}*

11

09352-50903-600

HOSE, FUEL (PUMP TO CARB) *{L:600->300 L:600->270 MODEL:05 <-15211-91J00-380}*

HOSE, FUEL (PUMP TO CARB) *{L:600->300 L:600->270 MODEL:05 <-15211-91J00-380}*

12

09352-50903-600

HOSE, FUEL (COCK TO ELB) *{L:600->350 <-15211-91J00-380}*

HOSE, FUEL (COCK TO ELB) *{L:600->350 <-15211-91J00-380}*

13

09359-50823-600

HOSE, FUEL (CONN TO ELB) *{L:600->40}*

HOSE, FUEL (CONN TO ELB) *{L:600->40}*

14

3 WAY, ELB

3 WAY, ELB

15

CLIP

CLIP

16

CLIP

CLIP

17

CLAMP

CLAMP

18

REFER TO FIG.12(C- 6) FOR DF6:511204~

REFER TO FIG.12(C- 6) FOR DF6:511204~
