Clamp Bracket (DF60A) для лодочных моторов Suzuki Marine DF 60ATL (2011)

Москва и регионы России

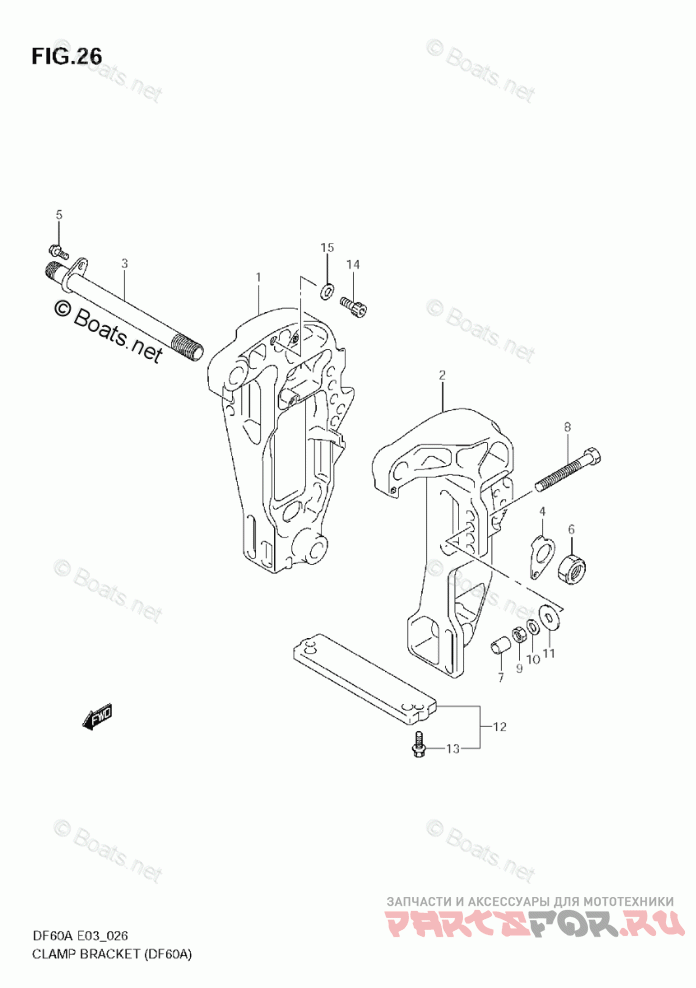

Clamp Bracket (DF60A)

Suzuki Marine DF 60ATL

#

oem код

название

цена

1

41111-88L01-0EP

BRACKET, CLAMP STBD

2

41121-88L00-0EP

BRACKET, CLAMP PORT

3

41130-88L00

SHAFT, CLAMP BRACKET

4

41135-93J11

WASHER, CLAMP BRACKET SHAFT

5

09116-08137

BOLT, CLAMP BRKT SHAFT (8X22)

6

09159-22006

NUT, CLAMP BRACKET SHAFT

7

41153-94500

CAP, TRANSOM BOLT

8-2

09100-12091

BOLT (12X115,PITCH:1.25) *{OPT}*

8-1

09100-12093

BOLT (12X100,PITCH:1.25)

9

09159-12014

NUT

10

09160-12110

WASHER (12.5X22X3.0)

11

09160-12044

WASHER (12.5X35X3.2)

12

55320-94900

ZINC, PROTECTION

13

09116-06121

BOLT (6X25)

14

09106-10065

BOLT, HEXAGON SOCKET HEAD (10X20)

15

09160-10082

WASHER, PLAIN (10.5X19X2)

16

SPECIAL-NOTE

REFER TO FIG.27 (F- 3) FOR DF40A/50A
