Carburetor (DF4/6 Model:05-) для лодочных моторов Suzuki Marine DF 4L (2011)

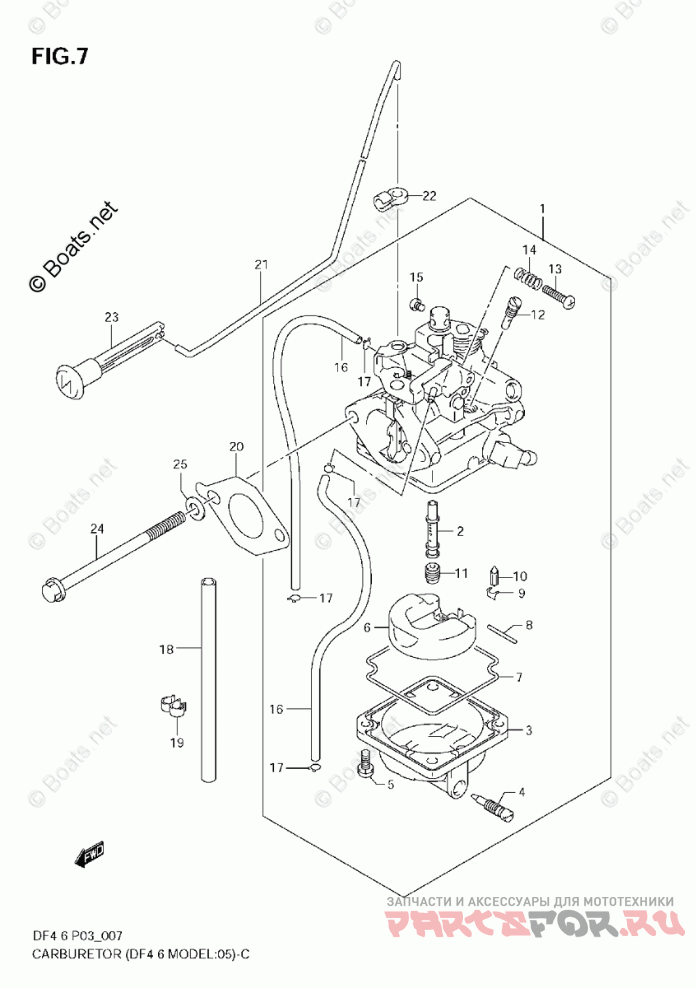

Carburetor (DF4/6 Model:05-)

Suzuki Marine DF 4L

oem код

название

цена

1-2

13200-91J70

CARBURETOR *{DF6:~511203}*

1-4

13200-91JC0

CARBURETOR *{DF4 HIGH ALTITUDE SPEC.}*

1-3

13200-91JB1

CARBURETOR *{DF6:511204~}*

1-1

13200-91J81

CARBURETOR *{DF4}*

2-2

13236-91J20

NOZZLE, MAIN *{DF6}*

2-1

NOZZLE, MAIN *{DF4}*

CHAMBER, FLOAT

SCREW, DRAIN

SCREW

FLOAT

GASKET, FLOAT CHAMBER

13254-91J00

PIN, FLOAT

13375-43E00

CLIP

13371-91J10

VALVE, FLOAT

11-2

09491-78010

JET, MAIN (78) *{DF6}*

11-3

09491-75012

JET, MAIN (75) *{DF6 HIGH ALTITUDE SPEC.}*

11-1

09491-70016

JET, MAIN (70) *{DF4}*

12-3

09492-35029

JET, PILOT (35) *{DF6 HIGH ALTITUDE SPEC.}*

12-1

09492-35029

JET, PILOT (35) *{DF4}*

12-2

09492-38008

JET, PILOT (38) *{DF6}*

SCREW, THROTTLE STOP

SPRING

SCREW

HOSE, AIR VENT *{DF4 DF6:511204~}*

13276-91J00

CLIP *{DF4 DF6:511204~}*

09351-60802-200

PROTECTOR *{DF4 DF6:511204~}*

09408-00200

CLAMP *{DF4 DF6:511204~}*

13125-91J10

GASKET, CARBURETOR

21-1

13413-91J10

ROD, CHOKE

21-2

13413-91J20

ROD, CHOKE *{DF4 DF6:511204~}*

CONNECTOR, CHOKE ROD

KNOB, CHOKE

BOLT

WASHER
