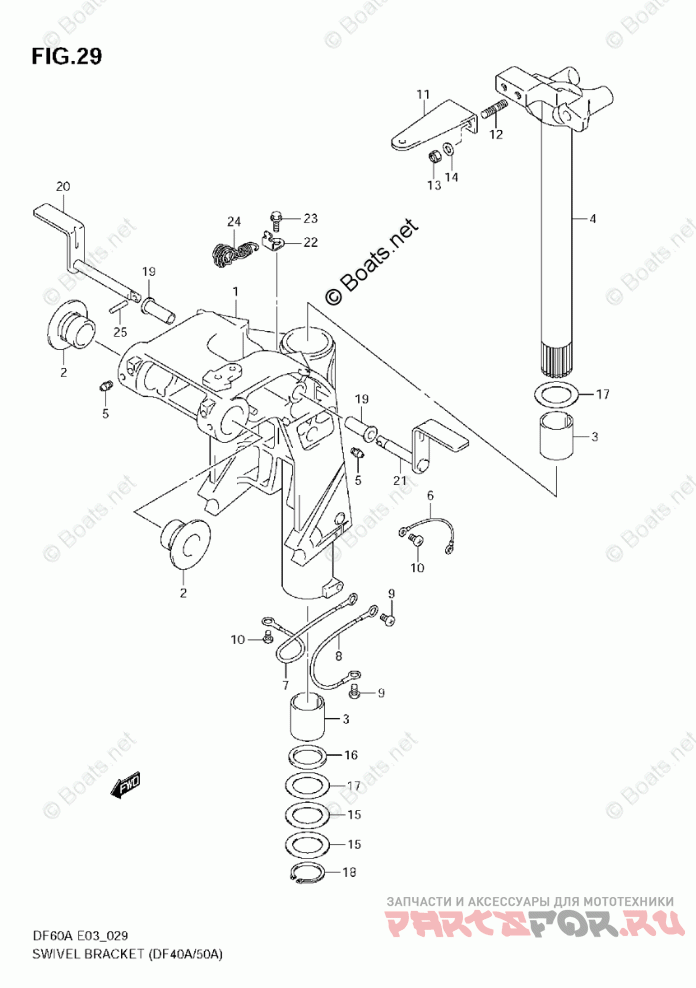

SWIVEL BRACKET (DF40A/50A)

Suzuki Marine DF 40ATL

Suzuki Marine
#oem кодцена
1
43111-88L20-0EP
BRACKET, SWIVEL (L)
2
43211-87J00
BUSH, SWIVEL BRACKET
3
43711-89J10
BUSH, STEERING
4
43750-88L20-0EP
BRACKET, STEERING (L)
5
22511-99011
NIPPLE, GREASE
6
36894-95201
LEAD (CLAMP TO SWIVEL)
7
36895-87D01
LEAD (SWIVEL TO MOUNT BRKT)
8
36895-87D01
LEAD (SWIVEL TO HOUSING)
9
09125-06063
SCREW, LEAD (6X10)
10
29125-93J10
SCREW, LEAD (5X8)
11
43755-88L00-0EP
ATTACHMENT, STEERING BRKT
12
09108-10161
BOLT, ATTACHMENT STUD (10X20)
13
09159-10050
NUT, ATTACHMENT (M10)
14
09160-10141
WASHER, ATTACHMENT (10.5X19X2
15
09160-39003
SHIM, SWIVEL BRKT (39.5X58X0.3)
16
09282-39001
SEAL, SWIVEL BRKT (38X51X5)
17
09160-39002
WASHER, PILOT SHAFT (39.5X58X1)
18
09380-38003
CIRCLIP, PILOT SHAFT LOWER
19
41226-97E00
BUSH, TILT LOCK LEVER
20
41270-89J10
LEVER, TILT LOCK STBD
21
41280-89J04
LEVER, TILT LOCK PORT
22
45731-96312
BRACKET, SPRING
23
09116-06094
BOLT, TILT LOCK SPRING (6X15)
24
41230-97E10
SPRING, TILT LOCK
25
09205-03012
PIN, TILT LOCK PLATE
