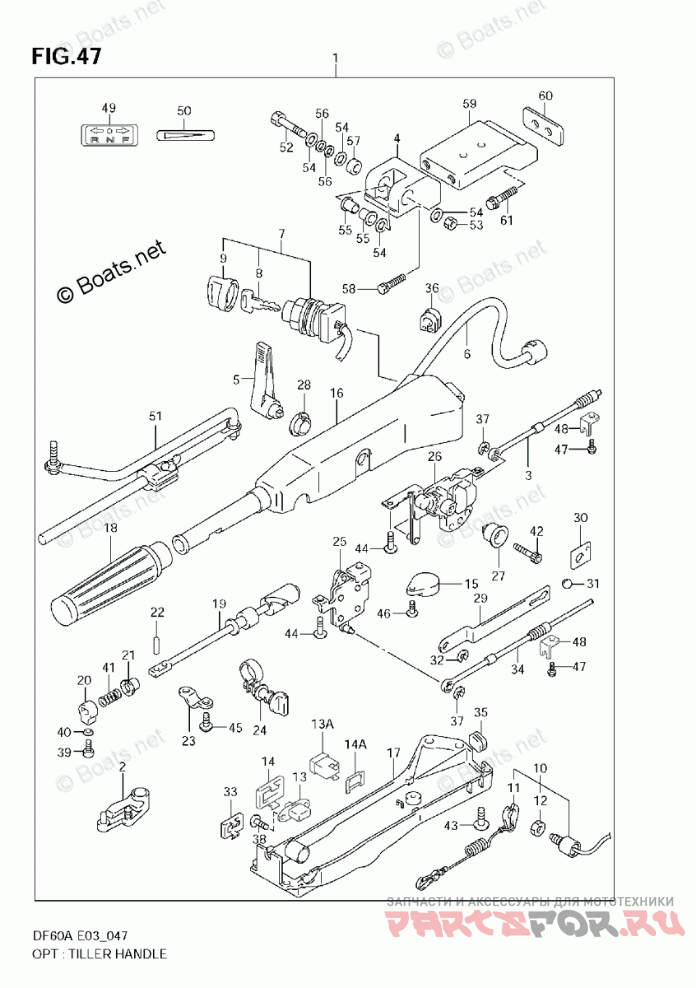

Opt:Tiller Handle для лодочных моторов Suzuki Marine DF 40ATL (2011)

Москва и регионы России

Opt:Tiller Handle

Suzuki Marine DF 40ATL

Opt:Tiller Handle

#

oem код

название

цена

1-2

63002-88L03-0EP

TILLER HANDLE KIT

TILLER HANDLE KIT

1-1

63002-88L00-0EP

TILLER HANDLE KIT

TILLER HANDLE KIT

2

LEVER, THROTTLE

LEVER, THROTTLE

3

CABLE, SHIFT

CABLE, SHIFT

4

43761-87J11-0EP

BRACKET, TILLER HANDLE

BRACKET, TILLER HANDLE

5

21111-87J10-0EP

LEVER, SHIFT

LEVER, SHIFT

6-2

WIRE, HANDLE *{FOR 63002-88L03-0EP}*

WIRE, HANDLE *{FOR 63002-88L03-0EP}*

6-1

WIRE, HANDLE

WIRE, HANDLE

7

SWITCH, IGNITION

SWITCH, IGNITION

8-5

KEY (935)

KEY (935)

8-8

KEY (938)

KEY (938)

8-4

KEY (934)

KEY (934)

8-3

KEY (933)

KEY (933)

8-2

KEY (932)

KEY (932)

8-1

KEY (931)

KEY (931)

8-9

KEY (939)

KEY (939)

8-10

KEY (940)

KEY (940)

8-7

KEY (937)

KEY (937)

8-11

KEY (941)

KEY (941)

8-12

KEY (942)

KEY (942)

8-6

KEY (936)

KEY (936)

9

CAP, KEY

CAP, KEY

10

SWITCH, EMERGENCY

SWITCH, EMERGENCY

11

PLATE, LOCK

PLATE, LOCK

12

NUT

NUT

13A

SWITCH ASSY, TRIM *{FOR 63002-88L03-0EP}*

SWITCH ASSY, TRIM *{FOR 63002-88L03-0EP}*

13

SWITCH, TRIM *{FOR 63002-88L00-0EP}*

SWITCH, TRIM *{FOR 63002-88L00-0EP}*

14

CAP, TRIM SWITCH *{FOR 63002-88L00-0EP}*

CAP, TRIM SWITCH *{FOR 63002-88L00-0EP}*

14A

PLATE, TRIM SWITCH *{FOR 63002-88L03-0EP}*

PLATE, TRIM SWITCH *{FOR 63002-88L03-0EP}*

15

BUZZER

BUZZER

16

63111-87J10-0EP

HOUSING, TILLER HANDLE

HOUSING, TILLER HANDLE

17-2

COVER, UNDER *{FOR 63002-88L03-0EP}*

COVER, UNDER *{FOR 63002-88L03-0EP}*

17-1

COVER, UNDER *{->63120-87J00 COVER KIT,UNDER}*

COVER, UNDER *{->63120-87J00 COVER KIT,UNDER}*

18

GRIP

GRIP

19

SHAFT, THROTTLE

SHAFT, THROTTLE

20

STOPPER, HANDLE ROD

STOPPER, HANDLE ROD

21

BUSH, HANDLE ROD

BUSH, HANDLE ROD

22

PIN, HANDLE ROD

PIN, HANDLE ROD

23

PLATE, THROTTLE SHAFT

PLATE, THROTTLE SHAFT

24

ADJUSTER, THROTTLE GRIP

ADJUSTER, THROTTLE GRIP

25

ARM, THROTTLE

ARM, THROTTLE

26

GEAR, SHIFT

GEAR, SHIFT

27

BUSH, SHIFT GEAR

BUSH, SHIFT GEAR

28

BUSH, SHIFT LEVER

BUSH, SHIFT LEVER

29

PLATE, LOCK

PLATE, LOCK

30

PLATE, BALL GUIDE

PLATE, BALL GUIDE

31

BALL

BALL

32

E RING

E RING

33

COVER, TRIM SWITCH *{FOR 63002-88L00-0EP}*

COVER, TRIM SWITCH *{FOR 63002-88L00-0EP}*

34

CABLE, THROTTLE

CABLE, THROTTLE

35

GROMMET, THROTTLE CABLE

GROMMET, THROTTLE CABLE

36

GROMMET, HANDLE WIRE

GROMMET, HANDLE WIRE

37

E RING

E RING

38

SCREW (2X6)

SCREW (2X6)

39

SCREW

SCREW

40

WASHER

WASHER

41

SPRING

SPRING

42

BOLT (8X50)

BOLT (8X50)

43

SCREW (5X14)

SCREW (5X14)

44

BOLT (6X12)

BOLT (6X12)

45

SCREW (5X12)

SCREW (5X12)

46

SCREW

SCREW

47

BOLT, CLAMP BRACKET

BOLT, CLAMP BRACKET

48

BRACKET, CLAMP

BRACKET, CLAMP

49

MARK, CLUTCH SHIFT

MARK, CLUTCH SHIFT

50

MARK, HANDLE GRIP

MARK, HANDLE GRIP

51

ADJUSTER, STEERING

ADJUSTER, STEERING

52

BOLT TILLER HANDLE PIVOT

BOLT TILLER HANDLE PIVOT

53

NUT, TILLER HANDLE PIVOT

NUT, TILLER HANDLE PIVOT

54

WASHER, TILLER HANDLE PIVOT

WASHER, TILLER HANDLE PIVOT

55

BUSH, TILLER HANDLE PIVOT

BUSH, TILLER HANDLE PIVOT

56

WASHER, TILLER HANDLE SPR

WASHER, TILLER HANDLE SPR

57

SPACER, TILLER HANDLE

SPACER, TILLER HANDLE

58

BOLT, TILLER HANDLE BRACKET

BOLT, TILLER HANDLE BRACKET

59-1

43755-88L10-0EP

EXTENSION, STRG BRACKET

EXTENSION, STRG BRACKET

59-2

43755-88L12-0EP

EXTENSION, STRG BRKT *{FOR 63002-88L03-0EP}*

EXTENSION, STRG BRKT *{FOR 63002-88L03-0EP}*

60

SPACER, STRG BRACKET

SPACER, STRG BRACKET

61

BOLT, ATTACHMENT

BOLT, ATTACHMENT
