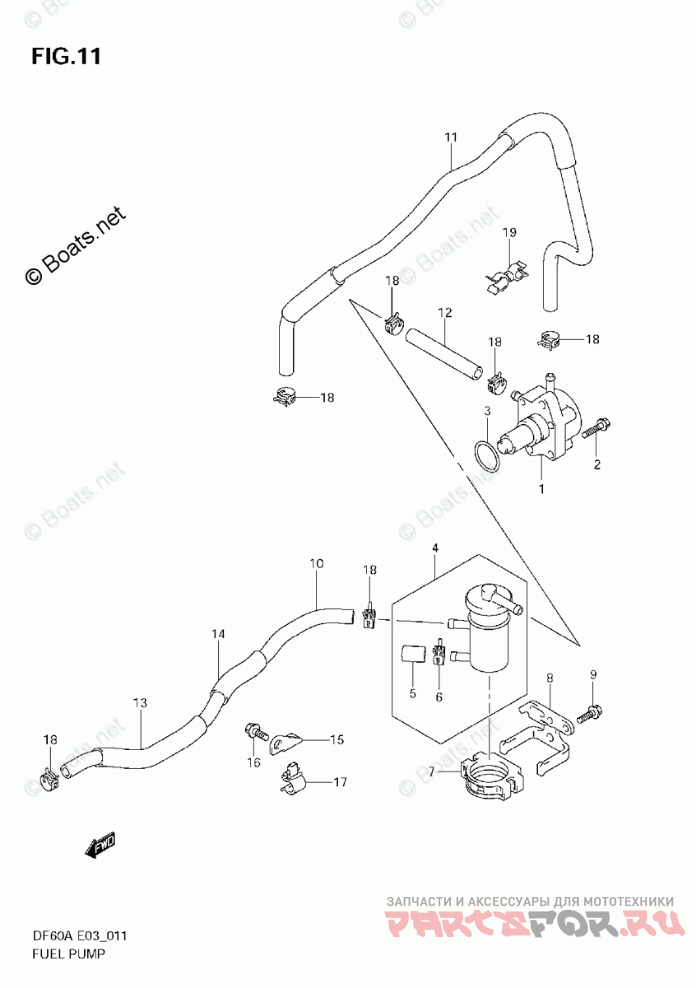

FUEL PUMP

Suzuki Marine DF 40ATL

Suzuki Marine
#oem кодцена
1
15100-90J1V
PUMP ASSY, FUEL
2
01550-06257
BOLT
3
09280-26005
O RING (D:2.4,ID:26.2)
4
15410-88L00
FILTER, FUEL
5
15419-87J00
CAP, FUEL FILTER
6
09401-11423
CLIP, FILTER CAP
7
15422-96J00
CLAMP, FILTER
8
15421-88L00
BRACKET, FUEL FILTER
9
01550-06167
BOLT
10
15191-88L10
HOSE, FUEL (CONN TO FILTER)
11-3
15192-88L20
HOSE, FUEL (PUMP TO SEPARATOR *{DF40A/50A}*
11-1
15192-88L10
HOSE, FUEL (PUMP TO SEPARATOR
11-2
15192-88L11
HOSE, FUEL (PUMP TO SEPARATOR *{DF60A:011616~}*
12
09343-70503-080
HOSE, FUEL (FILTER TO PUMP)
13
18498-99E10
PROTECTOR, FUEL HOSE NO.1 *{L:610->230}*
14
18498-96J20
PROTECTOR, FUEL HOSE NO.2 *{L:370->95}*
15
15197-88L00
BRACKET, FUEL HOSE CLAMP
16
01550-06127
BOLT, HOSE CLAMP BRACKET
17-2
09403-11320
CLAMP *{DF40A/50A}*
17-1
09403-11320
CLAMP *{DF60A}*
18
09401-11423
CLIP
19
09408-00054
CLAMP, FUEL HOSE
