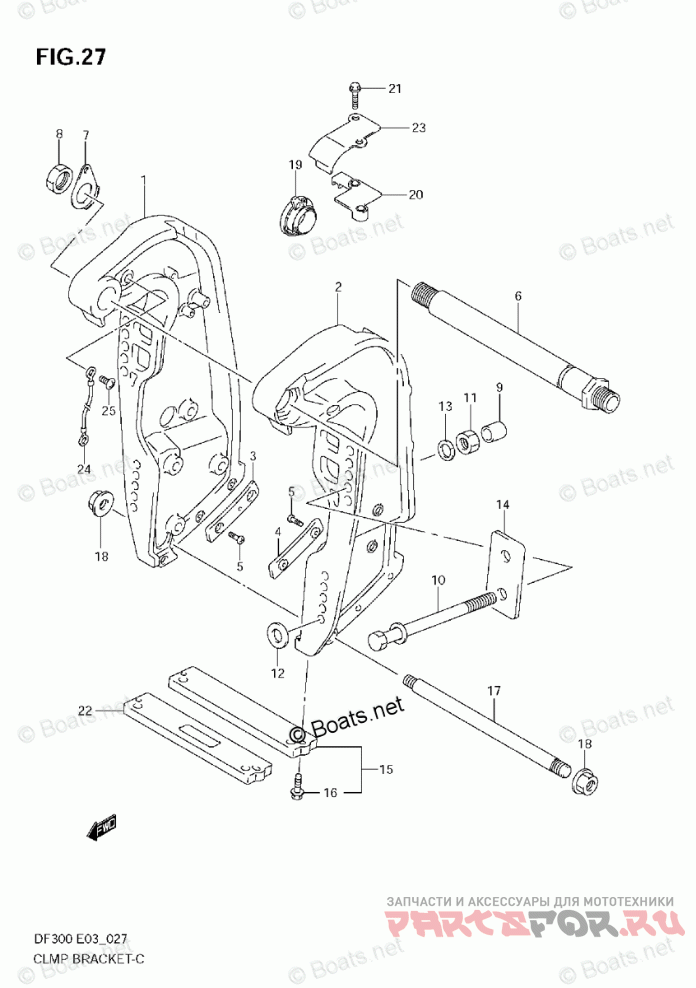

Clamp Bracket для лодочных моторов Suzuki Marine DF 300TX (2011)

Clamp Bracket

Suzuki Marine DF 300TX

oem код

название

цена

1-3

41111-93J14-0EP

BRACKET, CLAMP STBD (BLACK) *{MODEL:10~}*

1-2

41111-93J12-0EP

BRACKET, CLAMP STBD (BLACK) *{DF300T:980090~ DF300Z:980032~}*

1-1

41111-93J11-0EP

BRACKET, CLAMP STBD (BLACK) *{->41111-93J12-0EP USED W/41117-93J01}*

2-1

41121-93J03-0EP

BRACKET, CLAMP PORT (BLACK) *{->41121-93J04-0EP USED W/41122-93J01}*

2-2

41121-93J04-0EP

BRACKET, CLAMP PORT (BLACK) *{DF300T:980090~ DF300Z:980032~}*

2-3

41121-93J05-0EP

BRACKET, CLAMP PORT (BLACK) *{MODEL:10~}*

2-4

41121-93J06-0EP

BRACKET, CLAMP PORT *{DF300T:110001~ DF300Z:110001~}*

3-1

41117-93J00

PLATE, CLAMP BRKT LOWER STBD

3-2

41117-93J01

PLATE, CLAMP BRKT LOWER STBD *{DF300T:980090~ DF300Z:980032~}*

4-2

41122-93J01

PLATE, CLAMP BRKT LOWER PORT *{DF300T:980090~ DF300Z:980032~}*

4-1

41122-93J00

PLATE, CLAMP BRKT LOWER PORT

09125-06063

SCREW, 6X10

6-1

41130-93J02

SHAFT, CLAMP BRKT

6-2

41130-93J10

SHAFT, CLAMP BRKT *{MODEL:10~}*

7-1

41135-93J10

WASHER, CLAMP BRACKET SHAFT

7-2

41135-93J11

WASHER, CLAMP BRACKET SHAFT *{MODEL:10~}*

09159-22006

NUT, CLAMP BRACKET SHAFT

41153-93J00

CAP, TRANSOM BOLT

10-3

09100-12085

BOLT, TRANSOM (12.7X115) *{OPT}*

10-1

09100-12086

BOLT, TRANSOM (12.7X150)

10-2

09100-12092

BOLT, TRANSOM (12.7X75) *{OPT}*

09159-12062

NUT, TRANSOM BOLT (12.7X19)

09160-13017

WASHER, TRANSOM (13.2X45X5)

09160-13016

WASHER, TRANSOM (13.2X26X3)

PLATE, TRANSOM

ZINC SET, PROTECTION

BOLT (6X25)

PIN, TILT LOCK

NUT

CAM, TILT LIMIT SWITCH

48144-93J00

HOLDER, TILT LIMIT SWITCH

09103-06278

BOLT, SW HOLDER (6X20)

55321-94910

ANODE (MAGNESIUM) *{OPT}*

48145-93J00

COVER, TILT LIMIT SWITCH

36894-87D00

LEAD (CLAMP TO SWIVEL)

09125-06063

SCREW (CLAMP TO SWIVEL LEAD)
