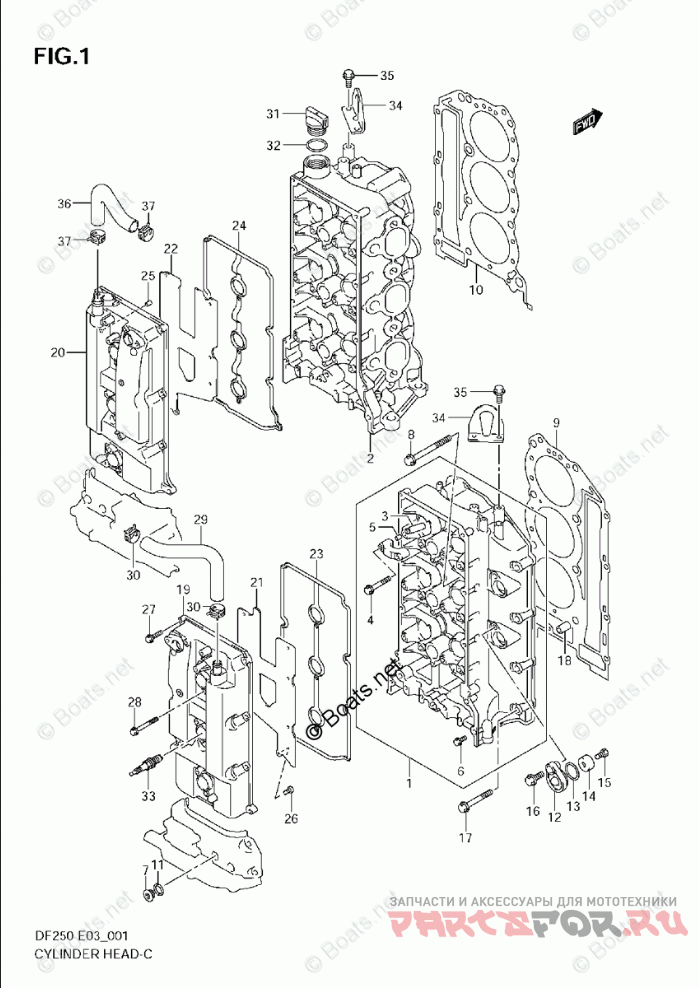

CYLINDER HEAD

Suzuki Marine DF 200TX

Suzuki Marine
#oem кодцена
1-3
11101-98J01
Деталь HEAD ASSY, CYLINDER STBD *{DF250S}*
1-2
11101-93J11
Деталь HEAD ASSY, CYLINDER STBD *{MODEL:08~}*
1-1
11101-93J01
Деталь HEAD ASSY, CYLINDER STBD
2-1
11103-93J02
Деталь HEAD ASSY, CYLINDER PORT
2-2
11103-93J11
Деталь HEAD ASSY, CYLINDER PORT *{MODEL:08~}*
2-3
11103-98J01
Деталь HEAD ASSY, CYLINDER PORT *{DF250S}*
3
11115-93J00-001
Деталь GUIDE, VALVE
4
11128-90J00
Деталь BOLT, CAM SHAFT HOUSING
5
09206-08001
Деталь PIN
6
01550-06207
Деталь BOLT
7
11116-93J01
Деталь PLUG
8
11119-93J00
Деталь BOLT *{EXCEPT DF250S}*
9-3
11141-98J01
Деталь GASKET, CYL HEAD STBD *{DF250S}*
9-4
11141-98J10
Деталь GASKET, CYL HEAD STBD *{DF250S MODEL:10~}*
9-2
11141-93J10
Деталь GASKET, CYL HEAD STBD *{MODEL:10~}*
9-1
11141-93J03
Деталь GASKET, CYL HEAD STBD
10-1
11142-93J03
Деталь GASKET, CYL HEAD PORT
10-2
11142-93J10
Деталь GASKET, CYL HEAD PORT *{MODEL:10~}*
10-3
11142-98J01
Деталь GASKET, CYL HEAD PORT *{DF250S}*
10-4
11142-98J10
Деталь GASKET, CYL HEAD PORT *{DF250S MODEL:10~}*
11
09168-16009
Деталь GASKET
12
11261-93J00
Деталь COVER, PROTECTION ANODE
13
09280-22019
Деталь O RING
14
55321-87J00
Деталь ANODE, PROTECTION
15-2
09103-06281
Деталь BOLT, PROTECTION ANODE *{MODEL:06~}*
15-1
09128-06021
Деталь BOLT, PROTECTION ANODE
16
01550-08207
Деталь BOLT
17-2
01550-08607
Деталь BOLT, CYL HEAD PORT
17-1
01550-08607
Деталь BOLT, CYL HEAD STBD
18
09206-14004
Деталь PIN
19
11170-93J01
Деталь COVER, CYL HEAD STBD
20-3
11180-93J02
Деталь COVER, CYLINDER HEAD PORT *{DF200/225 DF200T:421366~ DF200Z:421071~ DF225T DF225Z}*
20-2
11180-93J20
Деталь COVER, CYL HEAD PORT *{DF250 ->11180-93JV1}*
20-1
11180-93J00
Деталь COVER, CYL HEAD PORT *{DF200 ->11180-93JV0}*
20-4
11180-93J22
Деталь COVER, CYLINDER HEAD PORT *{DF250 DF250T:421903~ DF250Z:421256~ DF250S}*
21
11173-93J00
Деталь PLATE, BREATHER STBD
22
11183-93J00
Деталь PLATE, BREATHER PORT
23
11179-93J00
Деталь GASKET, CYL HEAD COVER STBD
24
11189-93J00
Деталь GASKET, CYL HEAD COVER PORT
25
09206-08001
Деталь PIN, CYL HEAD COVER PORT *{DF250}*
26
02112-0612A
Деталь SCREW, BREATHER PLATE
27
01547-06257
Деталь BOLT, CYL HEAD COVER NO.1
28
01547-06507
Деталь BOLT, CYL HEAD COVER NO.2
29
11174-93J00
Деталь HOSE, BREATHER
30
09401-18410
Деталь CLIP
31
11382-93J00
Деталь CAP, OIL FILLER
32
09280-26006
Деталь O RING, OIL FILLER CAP
33
09482-00427
Деталь SPARK PLUG (BKR6E)
34
11291-93J00
Деталь HOOK, ENGINE
35
01550-08207
Деталь BOLT, ENGINE HOOK
36
11184-93J00
Деталь HOSE, BREATHER *{DF200T:421366~ DF200Z:421071~ DF225T DF225Z DF250T:421903~ DF250Z:421256~ DF250S}*
37
09401-18410
Деталь CLIP
