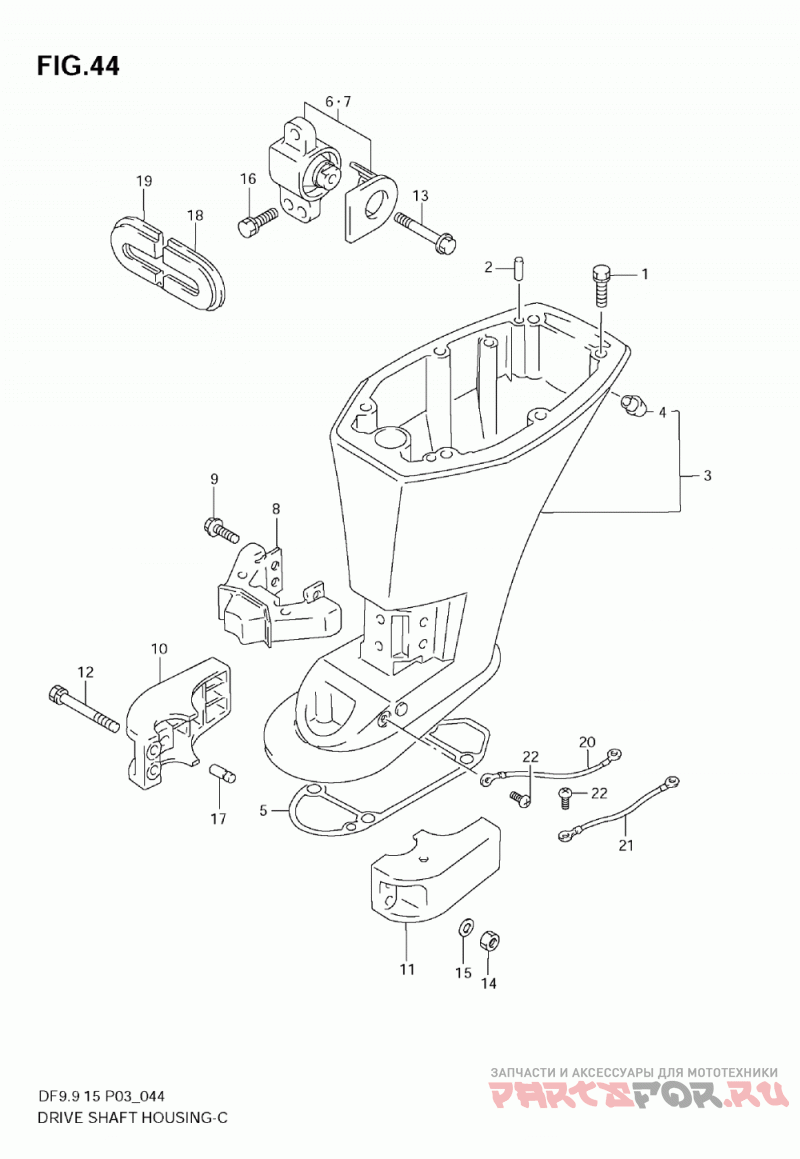

Корпус ведущего вала (нога)

Suzuki Marine DF9.9TH

Suzuki Marine
#oem кодцена
1
09116-08122
Болт (8x30)
2
09202-06023
Штифт
3
52110-93E70-0EP
HOUSING, DRIVE SHAFT (S)
3
52110-93E50-0EP
HOUSING, DRIVE SHAFT (S)
3
52110-94J20-0EP
HOUSING, DRIVE SHAFT (L)
3
52110-94J00-0EP
HOUSING, DRIVE SHAFT (L)
3
52110-93E40-0EP
HOUSING, DRIVE SHAFT (L)
5
55113-93E00
GASKET, GEAR CASE
6
54180-93E01
MOUNT, UPPER STBD
7
54190-93E01
MOUNT, UPPER PORT
8
54160-93E02
MOUNT, LOWER
9
09116-08137
BOLT (8X22)
10
54211-94J20-0EP
COVER, LOWER MOUNT STBD
10
54211-94J00-0EP
COVER, LOWER MOUNT STBD
10
54211-93E05-0EP
COVER, LOWER MOUNT STBD
11
54221-94J20-0EP
COVER, LOWER MOUNT PORT
11
54221-94J00-0EP
COVER, LOWER MOUNT PORT
11
54221-93E05-0EP
COVER, LOWER MOUNT PORT
12
09116-08138
BOLT (8X40)W-PLAIN WASHER
14
29141-93J10
Гайка
15
09160-08082
WASHER (8.5X16X1.2)
17
54213-93901
Штифт
18
54144-94J00
SEAL, UPPER MOUNT PORT
18
54144-93E10
SEAL, UPPER MOUNT PORT
19
54145-93E10
SEAL, UPPER MOUNT STBD
19
54145-94J00
SEAL, UPPER MOUNT STBD
20
36894-95201
LEAD, MOUNT TO HSG (L:165)
21
36895-87D01
LEAD, SWIVEL TO MOUNT (L:210)
22
29125-93J10
SCREW, LEAD (5X8)
