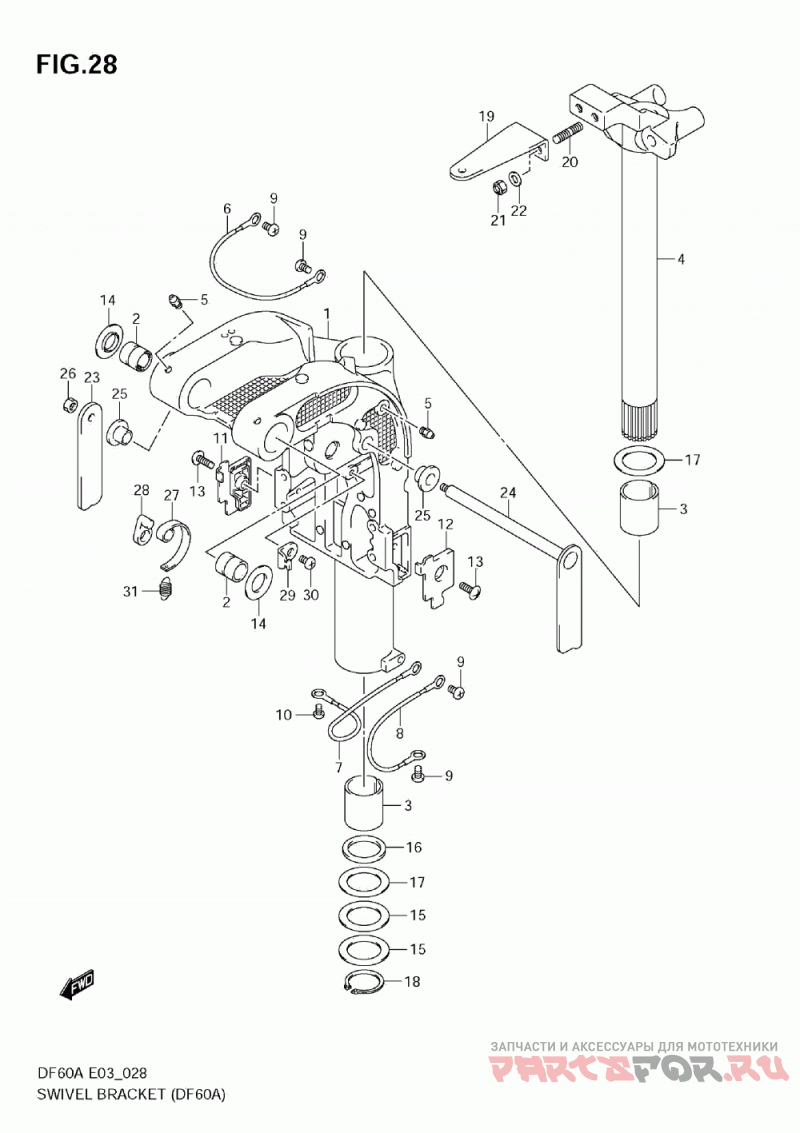

Swivel Bracket (df60a)

Suzuki Marine DF60A

Suzuki Marine
#oem кодцена
1
43111-88L00-0EP
BRACKET, SWIVEL
2
43211-88L00
BUSH, SWIVEL BRACKET
3
43711-97E00
BUSH, STEERING
4
43750-88L00-0EP
Кронштейн
5
22511-99011
Ниппель
6
36894-87D00
LEAD (CLAMP TO SWIVEL)
7
36895-87D01
LEAD (SWIVEL TO MOUNT BRKT)
9
09125-06063
SCREW, LEAD (6X10)
10
09125-05050
SCREW, LEAD (5X8)
11
43119-88L00
PLATE, SWIVEL BRKT LWR STBD
12
43119-88L10
PLATE, SWIVEL BRKT LWR PORT
13
09125-06067
BOLT, SWIVEL BRKT LWR PLATE (6X16)
14
43114-88L00
WASHER, SWIVEL TO CLAMP BRKT
15
09160-39003
SHIM, SWIVEL BRKT (39.5X58X0.3)
16
09282-39001
SEAL, SWIVEL BRKT (38X51X5)
17
09160-39002
WASHER, PILOT SHAFT (39.5X58X1)
18
09380-38003
CIRCLIP, PILOT SHAFT LOWER
19
43755-88L00-0EP
ATTACHMENT, STEERING BRKT
20
09108-10161
BOLT, ATTACHMENT STUD (10X20)
21
09159-10050
NUT, ATTACHMENT (M10)
22
09160-10141
WASHER, ATTACHMENT (10.5X19X2)
23
41221-88L00
LEVER, TILT LOCK STBD
24
41280-88L10
LEVER, TILT LOCK PORT
25
41224-88L00
BUSH, TILT LOCK LEVER
26
29141-93J00
NUT, TILT LOCK LEVER STBD
27
41231-88L00
LINK, TILT LOCK LEVER
28
41234-88L00
ARM, TILT LOCK LINK
29
45731-96312
BRACKET, SPRING
31
09443-10043
SPRING, TILT LOCK
