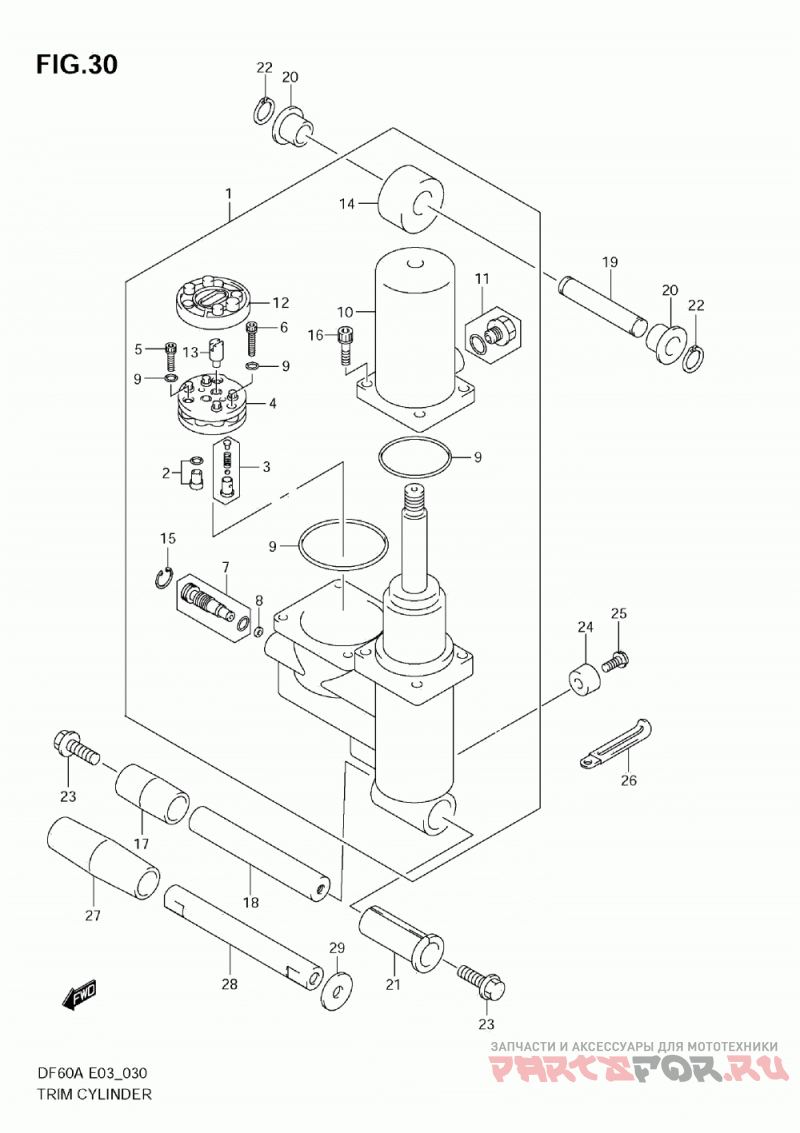

Цилиндр Подъема

Suzuki Marine DF60A

Suzuki Marine
#oem кодцена
1
48000-88L00
TRIM ASSY, POWER WITH TILT
1
48000-88L10
TRIM ASSY, POWER WITH TILT
17
47225-88L00
COLLAR, TILT CYLINDER LOWER
18
48121-88L00
SHAFT, TILT CYL LOWER
19
48321-89J11
SHAFT, TILT CYL UPPER
20
48325-89J00
BUSH, TILT CYL UPPER
21
48326-87J00
BUSH, TILT CYL LOWER
22
09380-12002
E RING, TILT CYL UPPER
23
09116-10131
BOLT, SHAFT TILT CYL LOWER (10X35)
24
55321-87J10
ANODE (MAGNESIUM)
24
55321-87J00
ANODE, PROTECTION
25
09103-06281
BOLT, PROTECTION ANODE (6X14)
26
29404-93J10
Зажим
28
48121-89J10
SHAFT, TILT CYL LOWER
29
09160-10139
WASHER, SHAFT TILT CYL LOWER
