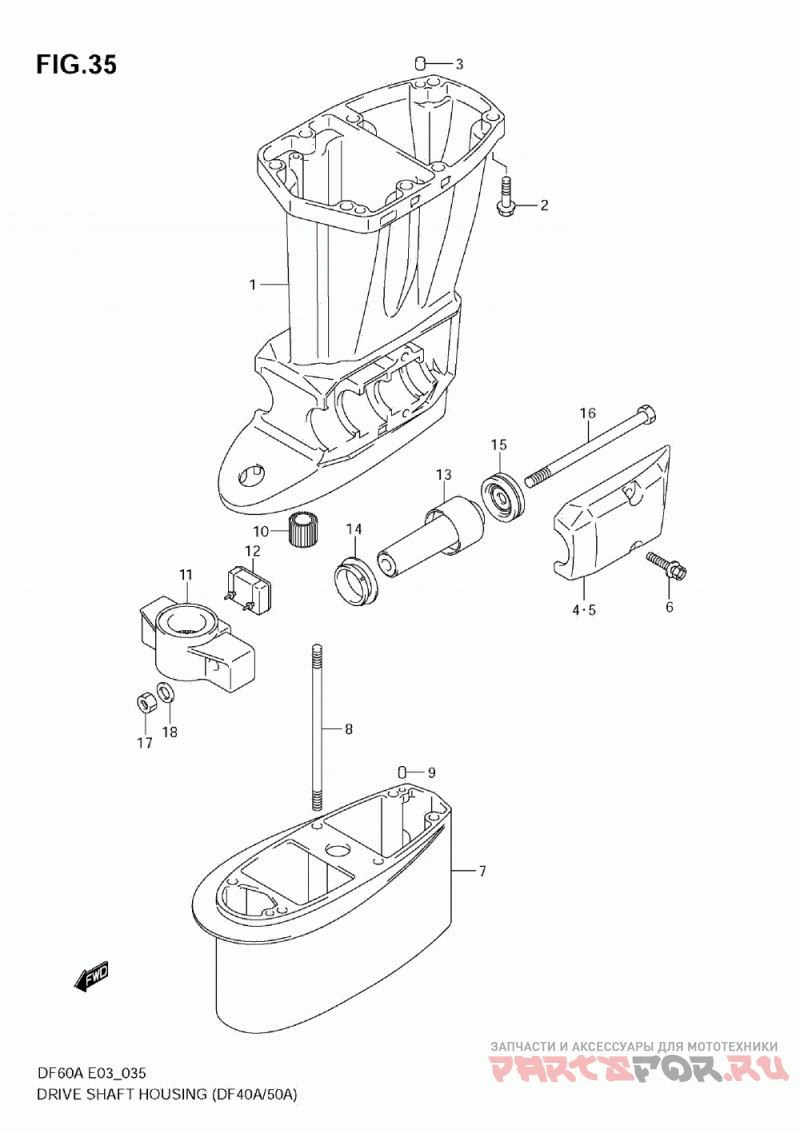

Drive Shaft Housing (df40a-50a)

Suzuki Marine DF40A

Suzuki Marine
#oem кодцена
1
52111-88L10-0EP
Корпус редуктора
2
09116-10139
BOLT, DRIVE SHAFT HOUSING (W-WASHER)(10X44)
3
09202-08006
PIN, KNOCK
4
54221-88L00-0EP
COVER, LOWER MOUNT STBD
5
54231-88L00-0EP
COVER, LOWER MOUNT PORT
7
52131-88L00-0EP
CASE, EXTENSION
8
09108-08254
BOLT, EXTENSION CASE STUD (8X162)
9
09202-06023
PIN, KNOCK
10
57130-94301
BUSH, DRIVE SHAFT
11
54211-87J10-0EP
BRACKET, LOWER MOUNT
12
54151-88L00
MOUNT, LOWER THRUST
13
54160-88L10
MOUNT, LOWER
14
54167-87L01
MOUNT, LOWER SIDE
15
54180-88L00
DAMPER, FWD STOPPER
16
54166-95J02
BOLT, LOWER MOUNT (12X200)
17
09159-12014
NUT, LOWER MOUNT (M12)
18
54114-90J01
WASHER, LOWER MOUNT NUT (12.5X22X3)
