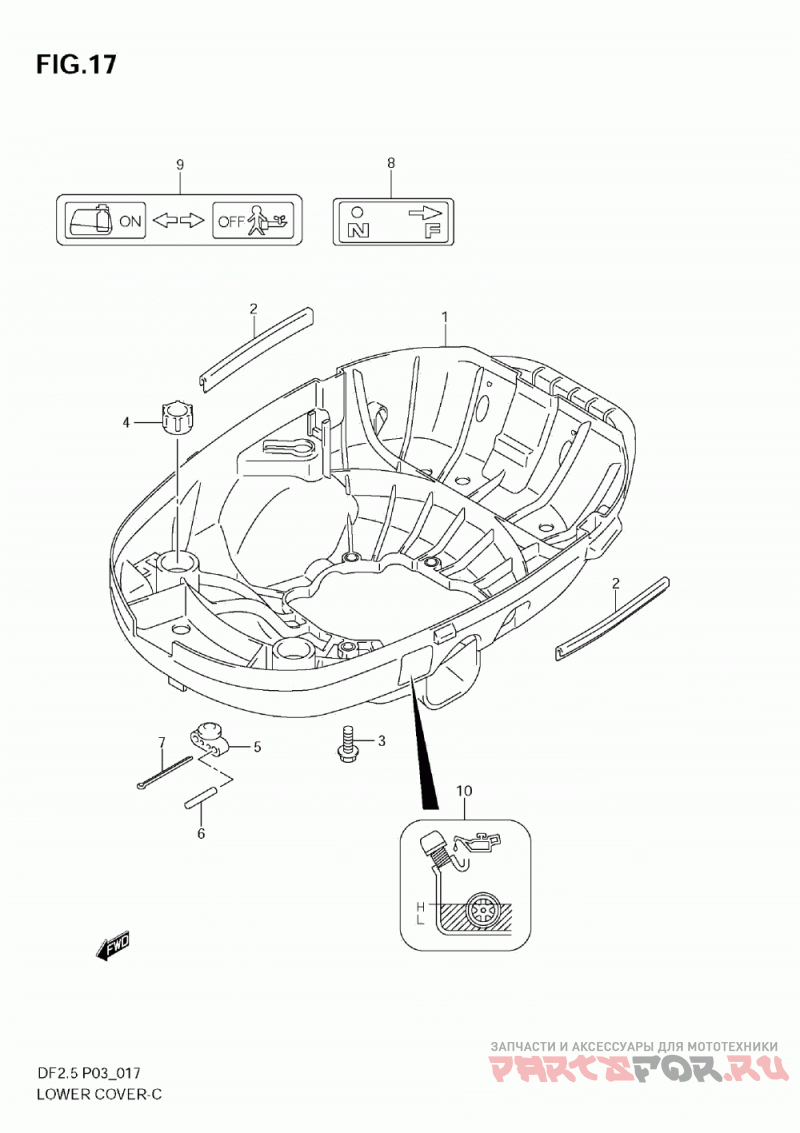

Нижния крышка
Suzuki Marine DF2.5
| # | oem код | название | цена |
|---|---|---|---|
1 | 61110-97J00-YR9 COVER, LOWER (GRAY) | COVER, LOWER (GRAY) | |
3 | 29116-93J00 Болт (6X20) | Болт (6X20) | |
4 | 61151-91J01 CUSHION, FUEL TANK HOLDER | CUSHION, FUEL TANK HOLDER | |
5 | 61521-91J00 HOLDER, SHEAR PIN | HOLDER, SHEAR PIN | |
6 | 09202-04002 PIN, SHEAR | PIN, SHEAR | |
7 | 09204-02001 PIN, PROP NUT COTTER | PIN, PROP NUT COTTER | |
8 | 21131-97J20 MARK, CLUTCH SHIFT | MARK, CLUTCH SHIFT | |
9 | 61211-97J00 MARK, FUEL COCK | MARK, FUEL COCK | |
10 | 61212-97J00 MARK, OIL LEVEL | MARK, OIL LEVEL |
