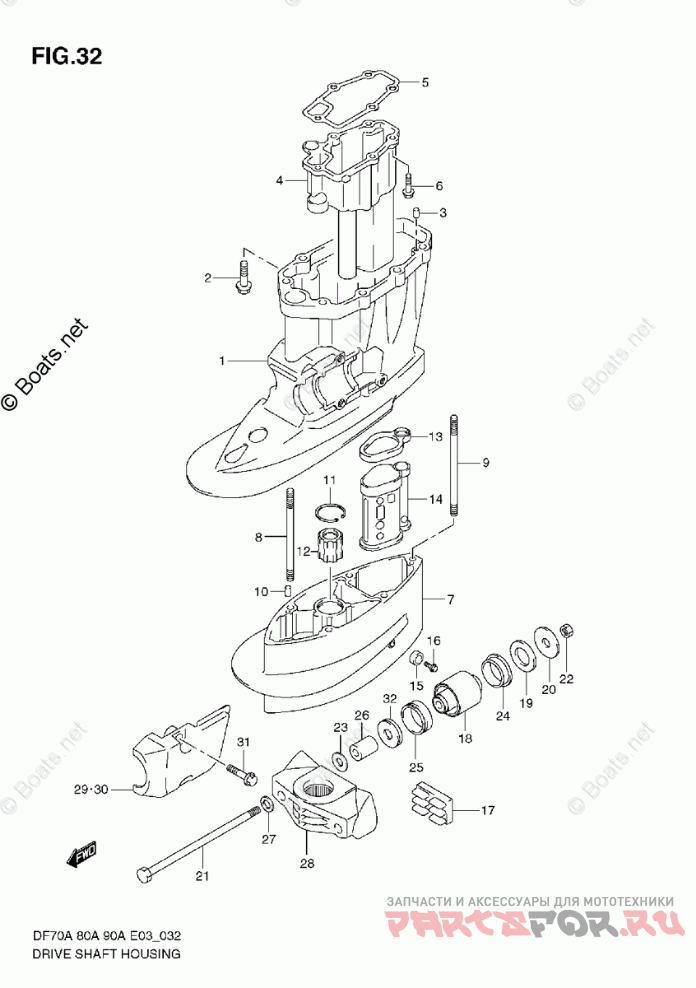

DRIVE SHAFT HOUSING

Suzuki Marine DF 90ATLK10

Suzuki Marine
#oem кодцена
1
52111-87L00-0EP
HOUSING, DRIVE SHAFT
2
09116-10139
BOLT (10X44)
3
09202-08006
PIN, KNOCK
4
52311-87L00
HOUSING, EXHAUST TUBE *{DF70A:~010753 DF80A:~010135 DF90A:~011035}*
5
52331-87L00
GASKET, EXH TUBE HOUSING *{DF70A:~010753 DF80A:~010135 DF90A:~011035}*
6
09116-08122
BOLT, EXH TUBE HOUSING (8X30) *{DF70A:~010753 DF80A:~010135 DF90A:~011035}*
7
52131-87L00-0EP
CASE, EXTENSION *{TYPE:X}*
8
09108-10115
BOLT, EXTENSION CASE STUD NO. *{TYPE:X}*
9
09108-10157
BOLT, EXTENSION CASE STUD NO. *{TYPE:X}*
10
09202-08006
PIN, KNOCK *{TYPE:X}*
11
09381-40005
CIRCLIP *{TYPE:X}*
12
57130-87E02
BUSH, DRIVE SHAFT *{TYPE:X}*
13
52333-87L00
SEAL, EXH TUBE EXTENSION *{TYPE:X DF70A:~010753 DF80A:~010135 DF90A:~011035}*
14
52411-87L00
EXTENSION, EXH TUBE *{TYPE:X DF70A:~010753 DF80A:~010135 DF90A:~011035}*
15-2
55321-87J10
ANODE (MAGNESIUM) *{OPT,TYPE:X}*
15-1
55321-87J00
ANODE, PROTECTION *{TYPE:X}*
16
09103-06281
BOLT, ANODE PROTECTION (6X14) *{TYPE:X}*
17
54151-87L00
MOUNT, LOWER THRUST
18
54160-87L00
MOUNT, LOWER
19
54165-87L00
DAMPER, REVERSE STOPPER LWR
20
09160-12120
WASHER, REVERSE STOPPER LWR (12X48X3)
21
54166-95J02
BOLT, LOWER MOUNT
22
09159-12014
NUT, LOWER MOUNT
23
09160-12113
WASHER, LWR MT (12.5X30X2.5)
24-1
54167-87L00
MOUNT, LOWER SIDE
24-2
54167-87L01
MOUNT, LOWER SIDE *{DF70A:010114~ DF80A:010016~ DF90A:010139~}*
25
54167-87L10
MOUNT, FWD LOWER SIDE
26
54173-87L00
SPACER, LOWER MOUNT
27
54114-90J01
WASHER, LOWER MOUNT BOLT
28
54211-90J01-0EP
BRACKET, LOWER MOUNT
29
54221-87L00-0EP
COVER, LOWER MOUNT STBD
30
54231-87L00-0EP
COVER, LOWER MOUNT PORT
31
09116-10139
BOLT, LOWER MOUNT COVER (W/WASHER)(10X44)
32
54180-87L00
DAMPER, FWD STOPPER
