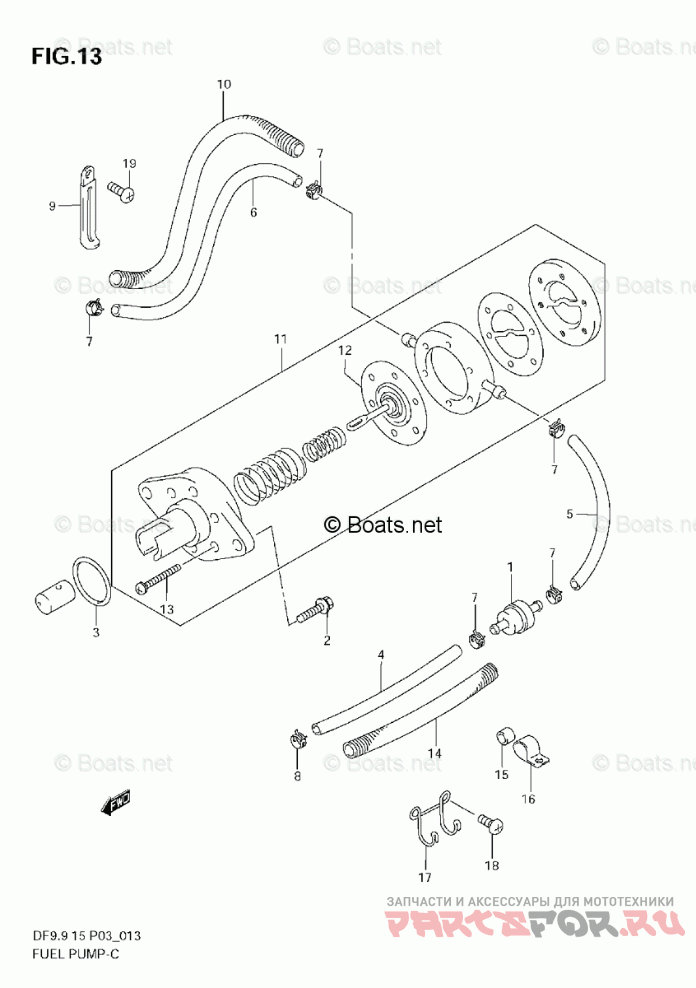

FUEL PUMP

Suzuki Marine DF 9.9THSK10 VIN#

Suzuki Marine
#oem кодцена
1
15410-98500
FILTER ASSY, FUEL
2
01550-06257
BOLT
3
09280-26005
O RING (D:2.4 ID:26.2)
4
09359-50823-600
HOSE, FUEL (CONN TO FILTER) *{L:600->470}*
5
15211-91J00-060
HOSE, FUEL (FILTER TO PUMP)
6
15211-91J00-640
HOSE, FUEL (PUMP TO CARB)
7
09401-08411
CLIP
8
09401-10409
CLIP
9
09404-06432
CLAMP (L:65)
10
16919-93E00
PROTECTOR (L:560) *{<-16919-94J00-560}*
11
15100-93E00
PUMP ASSY, FUEL
12
15170-99E00
DIAPHRAGM SET
13
15251-93E00
SCREW
14
16919-93E00
PROTECTOR (L:560) *{L:560->400 <-16919-94J00-400}*
15
09180-06300
SPACER *{DF9.9R}*
16
09403-14204
CLAMP
17
65792-93E10
CLAMP, FUEL HOSE
18
09125-06069
SCREW (6X12)
19
02112-06127
SCREW
20
SPECIAL-NOTE
REFER TO FIG.14(C- 9) FOR MODEL:05~
