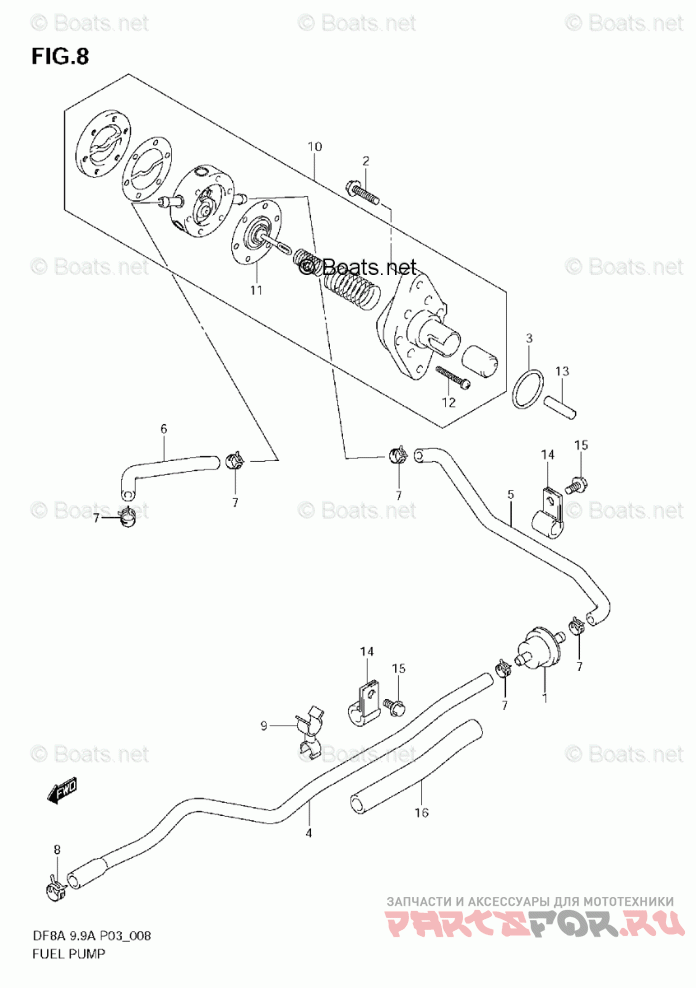

FUEL PUMP

Suzuki Marine DF 8ARSK10

Suzuki Marine
#oem кодцена
1
15410-98500
FILTER, FUEL
2
01550-06257
BOLT
3-1
09280-26005
O RING (D:2.4 ID:26.2)
3-2
09280-26L01
O RING (D:2.4 ID:26.2) *{DF8A:110001~ DF9.9A:110001~}*
4
15192-99J11
HOSE, FUEL (CONN TO FILTER)
5
15193-99J11
HOSE, FUEL (FILTER TO PUMP)
6
15191-99J11
HOSE, FUEL (PUMP TO CARB)
7
09401-09404
CLIP
8
09401-11422
CLIP
9
09408-00054
CLAMP
10-2
15100-94JL0
PUMP ASSY, FUEL *{DF8A:110001~ DF9.9A:110001~}*
10-1
15100-94J0V
PUMP ASSY, FUEL
11
15170-94J0V
DIAPHRAGM SET
12
15251-93E00
SCREW
13
15131-99J00
ROD, FUEL PUMP
14
09403-12406
CLAMP
15
01550-06127
BOLT, FUEL HOSE CLAMP
16
18498-99J00
PROTECTOR, FUEL HOSE (100) *{DF8A:110001~ DF9.9A:110001~}*
