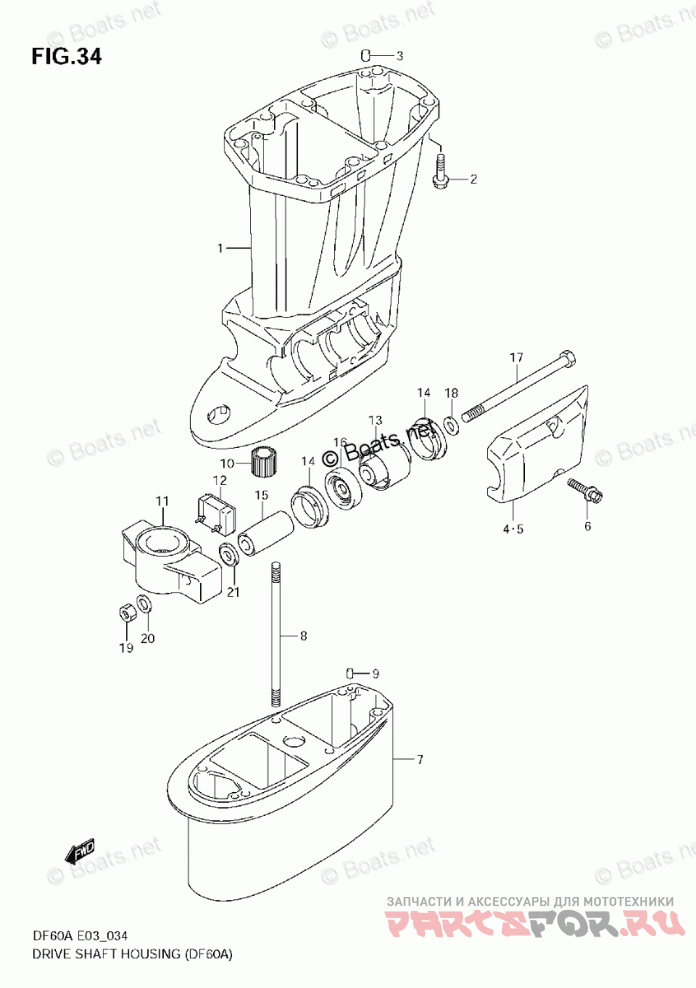

DRIVE SHAFT HOUSING (DF60A)

Suzuki Marine DF 60ATL

Suzuki Marine
#oem кодцена
1
52111-88L10-0EP
HOUSING, DRIVE SHAFT
2
09116-10139
BOLT, DRIVE SHAFT HOUSING (W/WASHER)(10X44)
3
09202-08006
PIN, KNOCK
4
54221-88L00-0EP
COVER, LOWER MOUNT STBD
5
54231-88L00-0EP
COVER, LOWER MOUNT PORT
6
09116-10139
BOLT, LOWER MOUNT COVER (W/WASHER)(10X44)
7
52131-88L00-0EP
CASE, EXTENSION *{TYPE:X}*
8
09108-08254
BOLT, EXTENSION CASE STUD (8X162) *{TYPE:X}*
9
09202-06023
PIN, KNOCK *{TYPE:X}*
10
57130-94301
BUSH, DRIVE SHAFT *{TYPE:X}*
11
54211-87J10-0EP
BRACKET, LOWER MOUNT
12
54151-88L00
MOUNT, LOWER THRUST
13
54160-88L00
MOUNT, LOWER
14
54167-87L01
MOUNT, LOWER SIDE
15
54170-88L00
CUSHION, LOWER MOUNT
16
54180-88L00
DAMPER, FWD STOPPER
17
54166-95J02
BOLT, LOWER MOUNT (12X200)
18
54114-88L00
WASHER, LOWER MOUNT BOLT (12.5X25X3)
19
09159-12014
NUT, LOWER MOUNT (M12)
20
09160-12110
WASHER, LOWER MOUNT NUT (12.5X22X3)
21
09160-12113
WASHER, LOWER MOUNT (12.5X30X2.5)
22
SPECIAL-NOTE
REFER TO FIG.35 (F-12) FOR DF40A/50A
