Fuel Vapor Separator (Model:99) для лодочных моторов Suzuki Marine DF 50TLK10 (2010)

Москва и регионы России

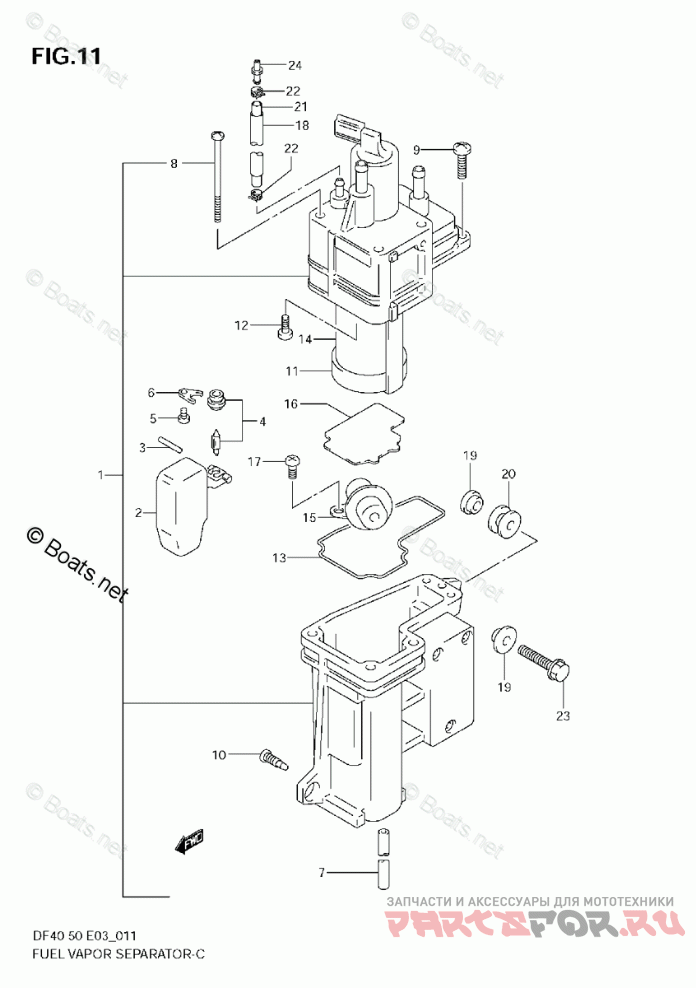

Fuel Vapor Separator (Model:99)

Suzuki Marine DF 50TLK10

Fuel Vapor Separator (Model:99)

#

oem код

название

цена

1

SEPARATOR, FUEL VAPOR *{->15600-87J01}*

SEPARATOR, FUEL VAPOR *{->15600-87J01}*

2

FLOAT

FLOAT

3

PIN

PIN

4

VALVE, NEEDLE *{WITH VALVE SEAT}*

VALVE, NEEDLE *{WITH VALVE SEAT}*

5

SCREW

SCREW

6

PLATE

PLATE

7

HOSE, DRAIN

HOSE, DRAIN

8

SCREW (L:70)

SCREW (L:70)

9

SCREW (L:15)

SCREW (L:15)

10

SCREW, DRAIN

SCREW, DRAIN

11

FILTER, FUEL PUMP

FILTER, FUEL PUMP

12

SCREW

SCREW

13

O RING

O RING

14

PUMP, FUEL

PUMP, FUEL

15

REGULATOR

REGULATOR

16

PLATE

PLATE

17

SCREW

SCREW

18

PROTECTOR *{L:450->300}*

PROTECTOR *{L:450->300}*

19

WASHER

WASHER

20

CUSHION

CUSHION

21

09352-50823-600

HOSE *{L:600->410}*

HOSE *{L:600->410}*

22

CLIP

CLIP

23

BOLT

BOLT

24

JET, EVAPORATION HOSE

JET, EVAPORATION HOSE

25

REFER TO FIG.12(C- 3) FOR MODEL:00~10

REFER TO FIG.12(C- 3) FOR MODEL:00~10
