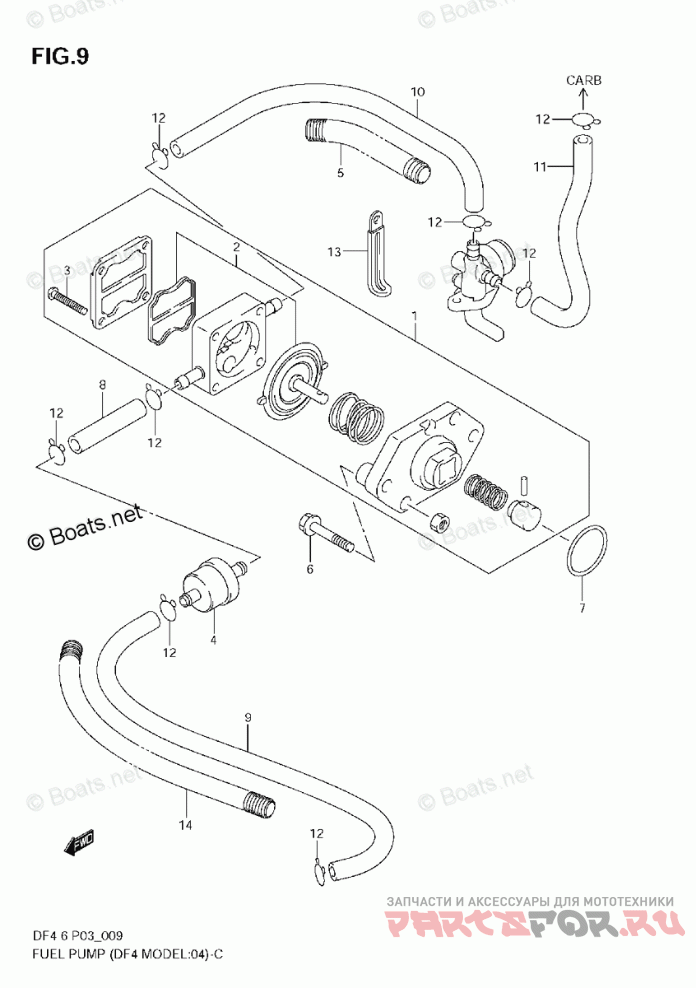

Fuel Pump (DF4 Model:04)

Suzuki Marine DF 4LK10

Suzuki Marine
#oem кодцена
1
15100-91J00
PUMP ASSY, FUEL
2
15170-91J00
DIAPHRAGM SET
3
15251-91J00
SCREW
4
15410-98500
FILTER
5
33834-93E00
PROTECTOR
6
09103-06182
BOLT (6X28)
7
09280-27006
O RING (D:2.0 ID:27.5)
8
09352-50903-600
HOSE, FUEL (FILTER TO PUMP) *{L:600->45}*
9
15191-91J00
HOSE, FUEL (TANK TO FILTER)
10
09352-50903-600
HOSE, FUEL (PUMP TO COCK) *{L:600->350}*
11
09352-50903-600
HOSE, FUEL (COCK TO CARB) *{L:600->190}*
12
09401-08410
CLIP
13
09404-06432
CLAMP
14
33834-91J00
PROTECTOR
15
SPECIAL-NOTE
REFER TO FIG.10(C- 4) FOR DF4 MODEL:05~ REFER TO FIG.11(C- 5) FOR DF6:~511203 REFER TO FIG.12(C- 6) FOR DF6:511204~
