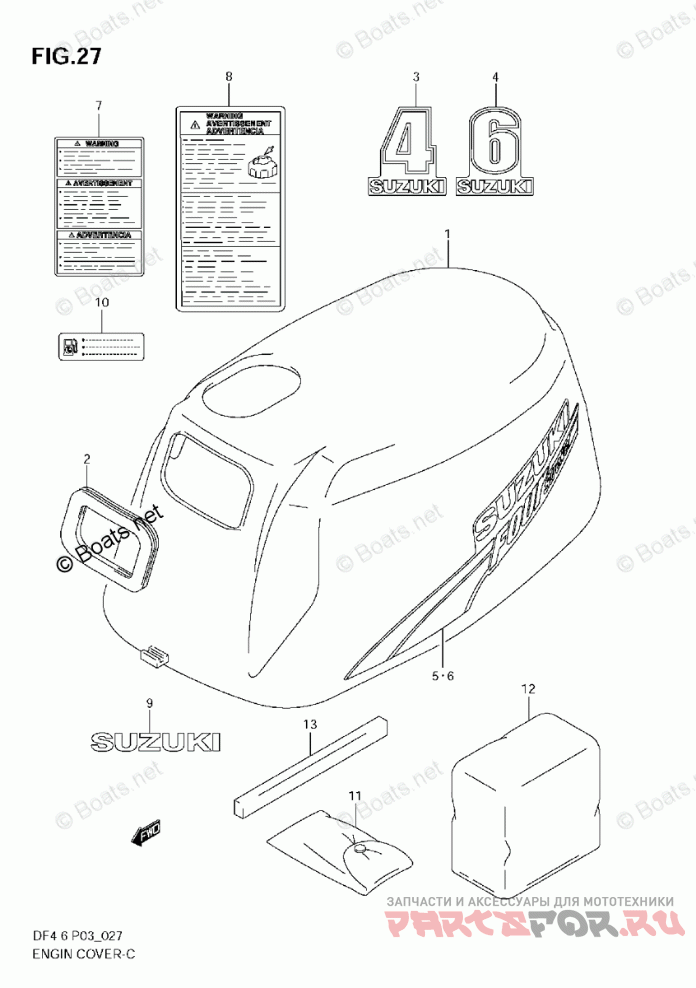

Engine Cover (Model:03-09)

Suzuki Marine DF 4LK10

Engine Cover (Model:03-09)

#

oem код

название

цена

1-1

61411-91J00-YR9

COVER, ENGINE UPPER (BLACK)

COVER, ENGINE UPPER (BLACK)

1-2

61411-91J10-0EP

COVER, ENGINE UPPER (BLACK) *{MODEL:08~09}*

COVER, ENGINE UPPER (BLACK) *{MODEL:08~09}*

2

SEAL, RECOIL STARTER

SEAL, RECOIL STARTER

3

MARK, EMBLEM REAR *{DF4}*

MARK, EMBLEM REAR *{DF4}*

4

MARK, EMBLEM REAR *{DF6}*

MARK, EMBLEM REAR *{DF6}*

5

STRIPE, ENGINE COVER STBD

STRIPE, ENGINE COVER STBD

6

STRIPE, ENGINE COVER PORT

STRIPE, ENGINE COVER PORT

7-2

LABEL, ENGINE COVER *{MODEL:04~07 ->61458-99E31}*

LABEL, ENGINE COVER *{MODEL:04~07 ->61458-99E31}*

7-1

LABEL, ENGINE COVER

LABEL, ENGINE COVER

8

LABEL, ENGINE COVER *{MODEL:08~09}*

LABEL, ENGINE COVER *{MODEL:08~09}*

9

68271-91J00-Y2D

EMBLEM, SUZUKI FRONT (SILVER) *{->68271-91J10-Y2D}*

EMBLEM, SUZUKI FRONT (SILVER) *{->68271-91J10-Y2D}*

10

LABEL, FUEL LIMITATION

LABEL, FUEL LIMITATION

11

TOOL ASSY

TOOL ASSY

12

COVER, WEATHER *{NOT FOR US MARKET}*

COVER, WEATHER *{NOT FOR US MARKET}*

13

GUARD, AIR INTAKE *{MODEL:08~09}*

GUARD, AIR INTAKE *{MODEL:08~09}*

14

REFER TO FIG.27A(F- 5) FOR MODEL:10~

REFER TO FIG.27A(F- 5) FOR MODEL:10~
