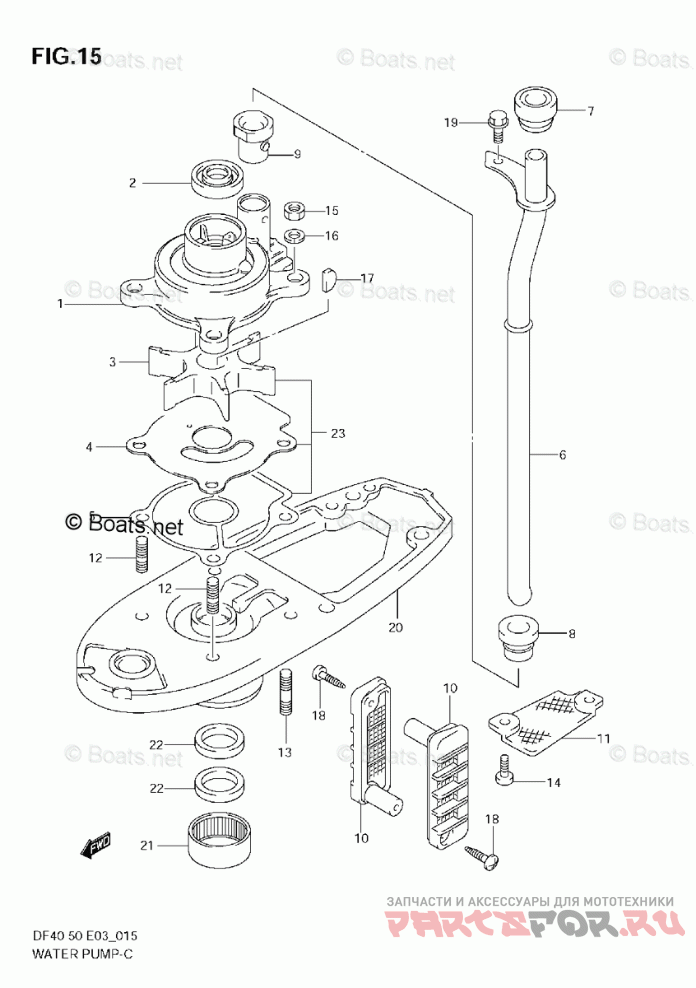

WATER PUMP

Suzuki Marine DF 40TLK10

Suzuki Marine
#oem кодцена
1-1
17410-95D11
CASE, WATER PUMP
1-2
17411-94421
CASE, WATER PUMP *{DF40:422328~ DF50:423475~}*
2
09282-17007
SEAL, WATER PUMP CASE *{DF40:~422327 DF50:~423474}*
3
17461-96312
IMPELLER, WATER PUMP
4
17471-94401
PANEL, PUMP CASE UNDER
5
17472-96303
GASKET, PUMP CASE UNDER
6-1
17560-87J11
TUBE, WATER (S)
6-2
17560-87J01
TUBE, WATER (L)
7
17563-94400
GROMMET, WATER TUBE UPPER
8
17565-94400
GROMMET, WATER TUBE MIDDLE *{TYPE:L}*
9
17566-94400
GROMMET, WATER TUBE LOWER
10
17631-96320
FILTER, WATER
11-1
17635-87E00
FILTER, SUB WATER
11-2
17635-87E10
FILTER, SUB WATER *{OPT}*
12
09108-06060
BOLT, STUD (6X18)
13
09108-06061
BOLT, STUD (6X35)
14
09125-05046
SCREW (5X12)
15
29141-93J00
NUT *{<-09140-06020}*
16
29162-93J00
LOCK WASHER *{<-09162-06006}*
17
09420-04006
KEY
18
03142-04309
SCREW
19
09116-06094
BOLT (6X15)
20-2
56130-87J00-0EP
HOUSING, DRIVE SFT BRG (BLACK *{DF40:510001~510209 DF50:510001~510465}*
20-1
56130-94413-0EP
HOUSING, DRIVE SFT BRG (BLACK *{MODEL:99~04}*
20-3
56130-94430-0EP
HOUSING, DRIVE SFT BRG (BLACK *{DF40:510210~ DF50:510466~}*
21-1
09263-25025
BEARING *{MODEL:99~04}*
21-2
09263-25025
BEARING *{DF40:510210~ DF50:510466~}*
22
09282-17005
SEAL, OIL
23
17400-96353
WATER PUMP REPAIR KIT *{OPT REF.NO,3,4,5,17}*
