Oil Seal Housing (Model:01%10) для лодочных моторов Suzuki Marine DF 40TLK10 (2010)

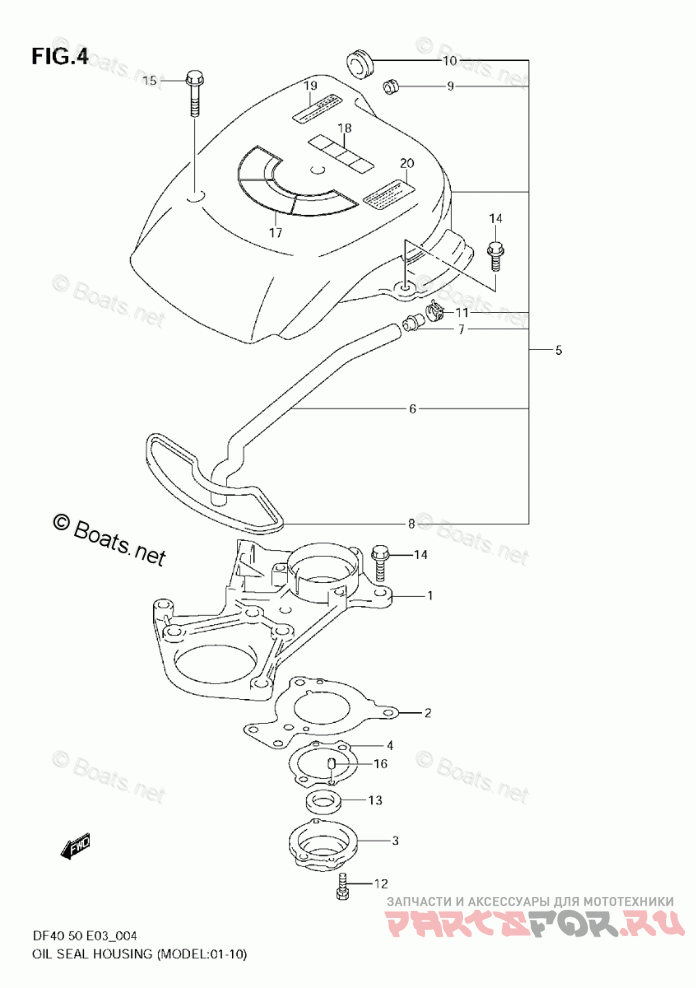

Oil Seal Housing (Model:01%10)

Suzuki Marine DF 40TLK10

oem код

название

цена

1-1

11411-87J11-019

HOUSING, UPPER OIL SEAL (BLACK)

1-2

11411-87J11

HOUSING, UPPER OIL SEAL *{MODEL:04}*

1-3

11411-87J20

HOUSING, UPPER OIL SEAL *{MODEL:05~10}*

11413-87J00

GASKET, UPPER OIL SEAL HOUSIN

3-1

11431-87J00-019

HOUSING, UNDER OIL SEAL (BLACK)

3-2

11431-87J00

HOUSING, UNDER OIL SEAL *{MODEL:04~10}*

11433-87J00

GASKET, UNDER OIL SEAL HOUSIN

5-2

11510-87J12

COVER, FLYWHEEL MAGNETO *{MODEL:10 ->11510-87J20}*

5-1

11510-87J12

COVER, FLYWHEEL MAGNETO

11174-87J00

HOSE, BREATHER *{->11174-99800}*

JET, BREATHER HOSE

SEAL, MAGNETO COVER

GROMMET

GROMMET

CLIP

BOLT (6X20)

13-2

09282-17011

SEAL, OIL *{MODEL:03~10}*

13-1

SEAL, OIL

BOLT

BOLT

LABEL, MAGNETO COVER

LABEL, CAUTION

LABEL, CLEARANCE *{MODEL:09~10}*

61494-87J00

LABEL, OIL *{MODEL:09~10}*
