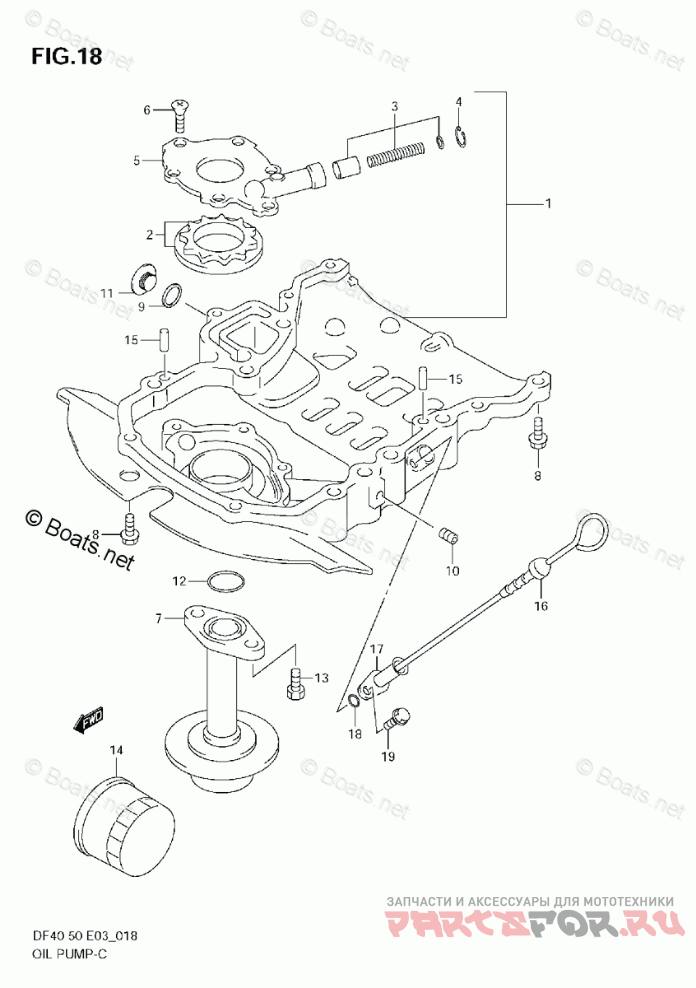

OIL PUMP

Suzuki Marine DF 40TLK10

Suzuki Marine
#oem кодцена
1-1
16100-87J01-019
CASE, OIL PUMP (BLACK)
1-2
16100-87J11
CASE, OIL PUMP (BLACK) *{MODEL:04~10}*
2
16130-70B01
ROTOR SET, OIL PUMP
3
16150-60A20
VALVE SET, OIL PUMP RELIEF
4
08331-4115A
CIRCLIP
5
16161-87J00
PLATE, OIL PUMP ROTOR
6
02122-0616A
SCREW
7
16520-87J00
STRAINER, OIL
8
29116-93J10
BOLT (8X35) *{<-09116-08114}*
9
09160-18031
GASKET (18.5X28X26)
10
11118-98J00
PLUG
11-2
09248-18010
PLUG *{DF40:510326~ DF50:510757~}*
11-1
09248-18006
PLUG
12
09280-16005
O RING (D:2.4,ID:15.8)
13
01570-0616A
BOLT
14
16510-87J00
FILTER ASSY, OIL
15
04221-08149
PIN
16
16910-87J00
GAUGE, OIL LEVEL
17
16930-87J01
GUIDE, OIL LEVEL GAUGE
18
09280-09008
0 RING (D:2.1,ID:8.8)
19
01550-06127
BOLT
