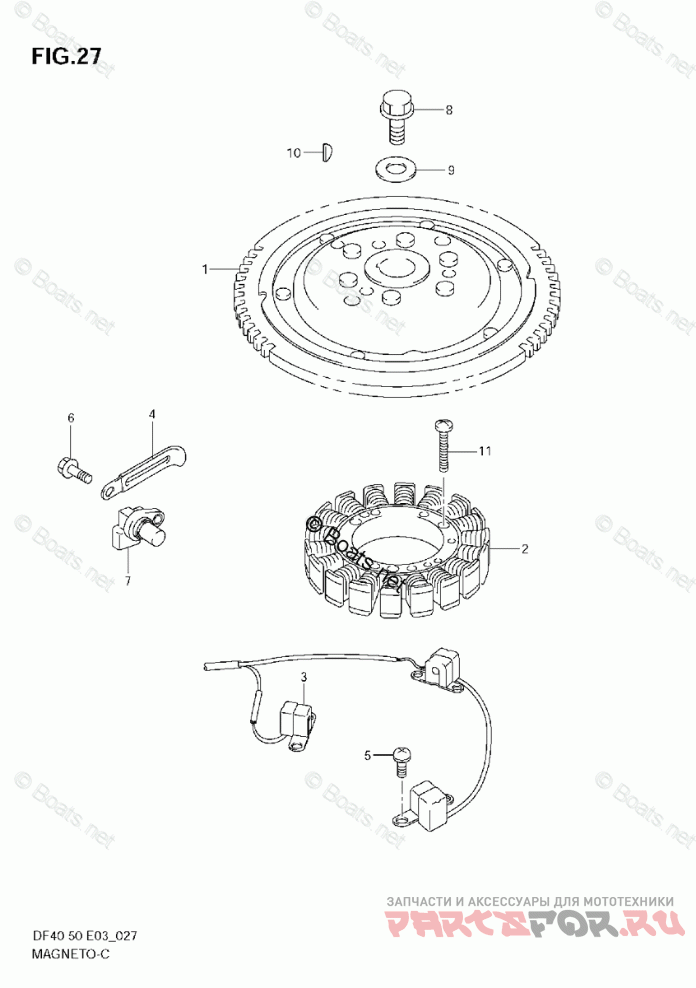

Magneto (Model:99,00)
Suzuki Marine DF 40TLK10
| # | oem код | название | цена |
|---|---|---|---|
1 | 32102-87J01 FLYWHEEL | FLYWHEEL | |
2 | 32120-87J00 COIL, BATTERY CHARGING | COIL, BATTERY CHARGING | |
3 | 32150-87J00 SENSOR ASSY, CKP | SENSOR ASSY, CKP | |
4-2 | 09404-06434 CLAMP (L:80) | CLAMP (L:80) | |
4-1 | 29404-93J10 CLAMP (L:65) *{<-09404-06432}* | CLAMP (L:65) *{<-09404-06432}* | |
5 | 02112-36127 SCREW | SCREW | |
6 | 02162-06167 SCREW | SCREW | |
7 | 33220-76G02 SENSOR, CMP | SENSOR, CMP | |
8 | 09103-16001 BOLT (16X40) | BOLT (16X40) | |
9 | 09160-16046 WASHER (16.5X36X4.5) | WASHER (16.5X36X4.5) | |
10 | 08341-31059 KEY | KEY | |
11 | 02112-06303 SCREW | SCREW | |
12 | SPECIAL-NOTE REFER TO FIG.28(E- 6) FOR MODEL:01~04 REFER TO FIG.29(E- 7) FOR MODEL:05~10 | REFER TO FIG.28(E- 6) FOR MODEL:01~04 REFER TO FIG.29(E- 7) FOR MODEL:05~10 |
