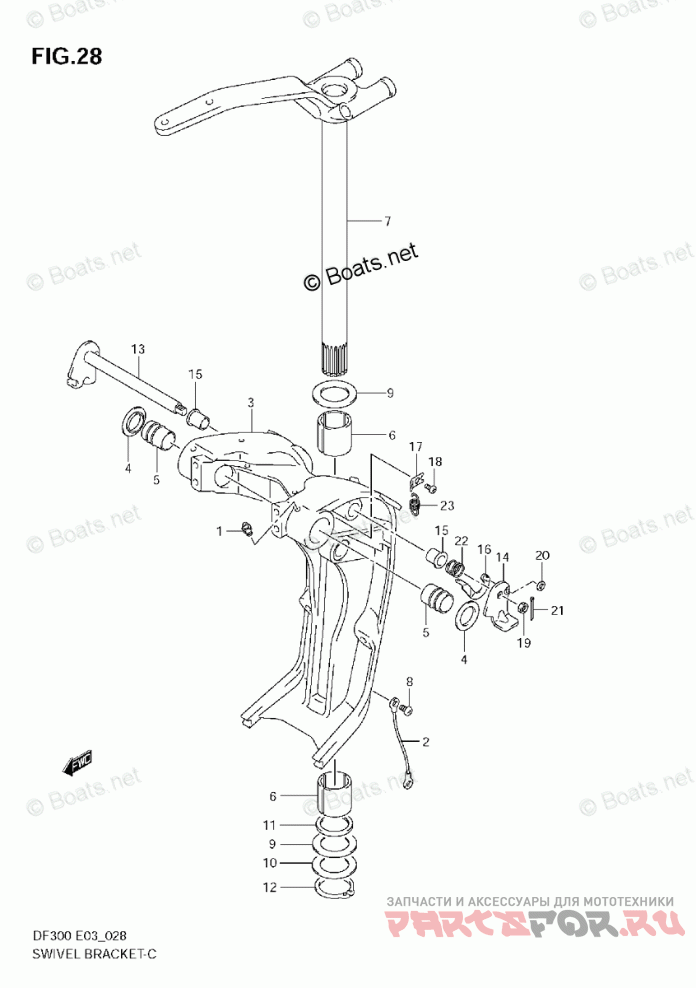

Swivel Bracket

Suzuki Marine DF 300TXXK10

Suzuki Marine
#oem кодцена
1
22511-99011
NIPPLE, GREASE SWIVEL BRKT
2
36894-87D00
LEAD (SWIVEL TO MOUNT BRKT)
3
43111-93J22-0EP
BRACKET, SWIVEL (BLACK)
4
43114-93J00
WASHER, SWIVEL TO CLAMP BRKT
5
43211-93J00
BUSH, CLAMP SHAFT SWIVEL
6
43711-97E00
BUSH, STEERING
7
43750-93J02-0EP
BRACKET, STEERING (BLACK)
8
09125-06063
SCREW, MT BRKT TO SWIVEL LEAD (6X10)
9
09160-39001
WASHER, SWIVEL BRACKET (39.5X64X1.0)
10
09181-39001
SHIM, SWIVEL BRACKET (39.5X64X0.3)
11
09282-39001
SEAL, PILOT SHAFT OIL
12
09380-38003
CIRCLIP, PILOT SHAFT LOWER
13-2
41220-93J11
LEVER, TILT LOCK *{DF300T:980792~ DF300Z:980285~}*
13-1
41220-93J01
LEVER, TILT LOCK *{->41200-93811 LEVER & LINK SET,TILT LOCK}*
14-2
41234-93J11
LEVER, TILT LOCK PORT *{DF300T:980792~ DF300Z:980285~}*
14-1
41234-93J00
LEVER, TILT LOCK PORT *{->41200-93811 LEVER & LINK SET,TILT LOCK}*
15
41224-95E01
BUSH, TILT STOPPER ROD
16-1
41230-95E00
LINK, TILT LOCK LEVER
16-2
41230-96J00
LINK, TILT LOCK LEVER *{DF300T:980792~ DF300Z:980285~}*
17
41233-95E10
BRACKET, TILT LOCK SPRING
18
09125-06063
SCREW, TILT LOCK SPR (6X10)
19
09140-10032
NUT, TILT LOCK LEVER PORT
20
09160-06082
WASHER, TILT LOCK LEVER LINK (6.5X13X1.0)
21
09204-01006
PIN, TILT LK LEVER LINK COTTE
22
09440-19028
SPRING, TILT LOCK SHAFT
23
09443-10043
SPRING, TILT LOCK
