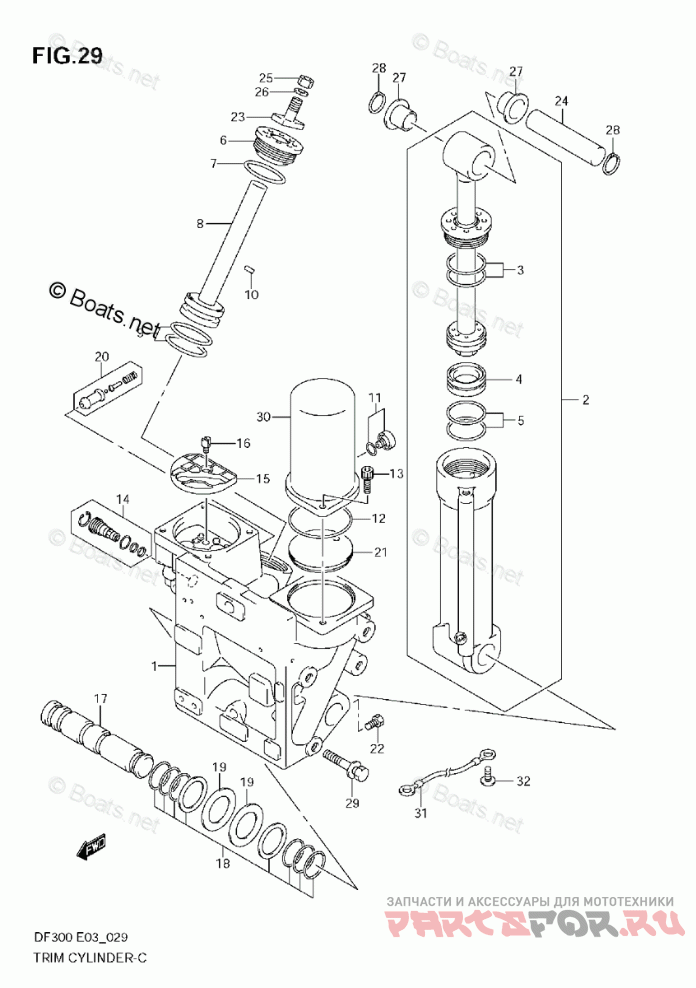

TRIM CYLINDER

Suzuki Marine DF 300TXK10

Suzuki Marine
#oem кодцена
1
48500-98J01
MANIFOLD ASSY *{INC.NO.6~10,15 <-48641-93J00}*
2
48400-98J00
CYLINDER ASSY
3
48405-93J00
O RING SET
4
48650-93J00
PISTON, FREE
5
48627-93J00
O RING SET
6
48630-98J00
ROD GUIDE
7
48633-93J00
O RING
8
48610-93J01
PISTON / RAM
9
48605-93J00
O RING SET
10
48691-93J00
CHECK VALVE
11
48572-87J10
PLUG
12
48585-95E00
O RING
13
48862-87J10
BOLT, RESERVOIR
14
48864-93J00
MANUAL VALVE
15
48582-95E01
FILTER
16
48583-95E00
JOINT, DRIVE
17-1
48121-93J01
SHAFT
17-2
48121-93J11
SHAFT *{DF300T:980538~ DF300Z:980192~}*
18
48125-93J00
O RING SET
19
48126-93J00
WASHER, TILT CYL TO MANIF
20
48320-93J00
VALVE SET, UP BLOW
21
48573-93J00
COVER
22-2
48128-93J10
BOLT *{DF300T:980538~ DF300Z:980192~}*
22-1
48128-93J00
BOLT
23
48311-93J01
PAD, TRIM CYL RAM
24
48321-93J00
SHAFT, TILT CYL UPPER
25
29141-93J20
NUT, TRIM CYL RAM
26
09162-10005
WASHER, TRIM CYL RAM (8.2X15.4X2.0)
27
09306-24001
BUSH, TILT CYL UPPER
28
09380-21002
CIRCLIP, TILT CYL UPPER SHAFT
29
09116-10136
BOLT, PTT
30
48571-93J00
RESERVOIR TANK
31-2
36895-87D01
LEAD, PTT TO ANODE *{DF300T:010088~ DF300Z:010045~}*
31-1
36895-87D01
LEAD, PTT TO ANODE
32-2
29125-93J10
SCREW (PTT TO ANODE LEAD) *{DF300T:010088~ DF300Z:010045~}*
32-1
29125-93J10
SCREW (PTT TO ANODE LEAD)
